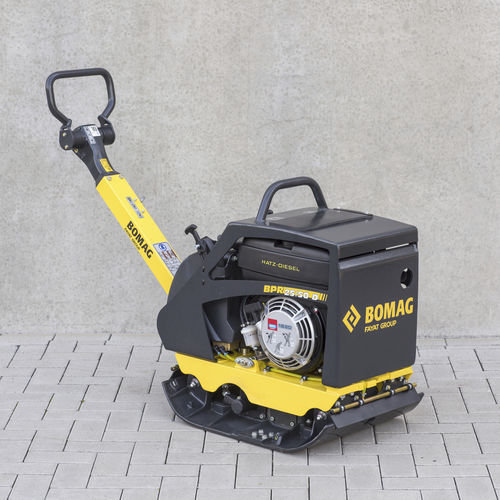

Reversible vibratory plate BPR 25/40 Dcompacting
Add to favorites
Compare this product
Characteristics
- Type
- reversible
- Other characteristics
- compacting
- Weight
150 kg
(330.69 lb)
Description
Overview
Reversible vibratory plates in the 25–40 kN performance class. Operating weights from 135 to 300 kg and optional transport wheels make these compact reversible plates suitable for a wide range of soil, asphalt and block-paving tasks.
Product summary
BPR 25/40 D is a compact reversible vibratory plate designed for soil and asphalt compaction and block paving on small to medium construction sites. The design emphasizes operator ergonomics, component protection and easy transport.
Main features
Fields of application
Soil compaction for civil engineering foundations; earthworks, asphalt compaction and block/lock paving. Well suited to small and medium construction sites where a compact, reversible compactor is required.
Standards
Options
Documentation
Datasheet available for BPR2540 / BPR2540D. Additional brochures for light equipment and service (product overview and service brochures).
Technical specifications
Reversible vibratory plates in the 25–40 kN performance class. Operating weights from 135 to 300 kg and optional transport wheels make these compact reversible plates suitable for a wide range of soil, asphalt and block-paving tasks.
Product summary
BPR 25/40 D is a compact reversible vibratory plate designed for soil and asphalt compaction and block paving on small to medium construction sites. The design emphasizes operator ergonomics, component protection and easy transport.
Main features
- Height-adjustable, low-vibration steering rod for reduced operator fatigue and an optimal working position.
- Optional robust transport wheels (puncture-proof available) for quick relocation between sites.
- Wide-opening hood for component protection and easy access to engine and service points.
Fields of application
Soil compaction for civil engineering foundations; earthworks, asphalt compaction and block/lock paving. Well suited to small and medium construction sites where a compact, reversible compactor is required.
Standards
- Special painting
Options
- 3-2-1 Warranty
- Automatic decompression (BPR25/40D)
- Comfortable control lever
- Tool kit
- Sprinkler system (+13 kg)
- Special painting
- Plastic mat
- Back-up drive protection
- Transport wheels, puncture-proof (+4 kg)
- US Version EPA 4 NRTC (BPR25/40D)
Documentation
Datasheet available for BPR2540 / BPR2540D. Additional brochures for light equipment and service (product overview and service brochures).
Technical specifications
- Model: BPR 25/40 D
- Emission stage: Stage V
- Weight (operating): 150 kg
- Engine power: 3.1 kW
- Working width: 400 mm
- Applications: Soil and asphalt compaction, block paving; highway and footpath construction and maintenance
- Transport: Optional transport wheels (puncture-proof available)
- Optional equipment: sprinkler system, tool kit, comfortable control lever, automatic decompression, back-up drive protection
- Notes: Further data on request; illustrations may show optional equipment
