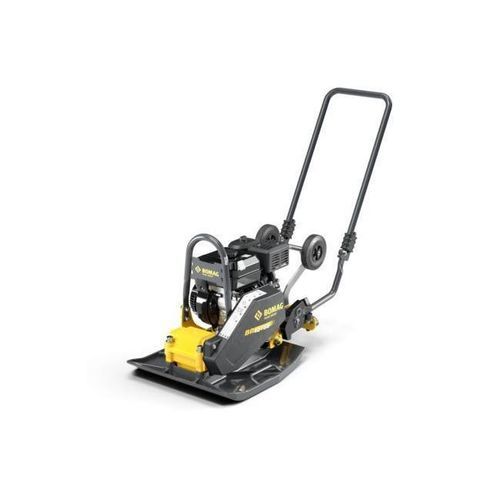

Forward travel vibratory plate BP 12/50

compacting

Overview

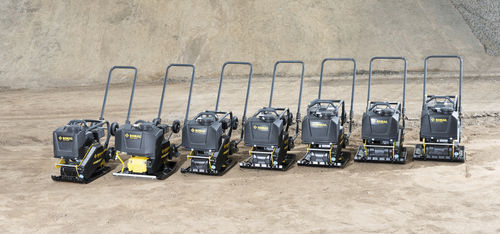

Flexible use on all construction sites. On the new single-direction vibratory plate BP 12/50 from BOMAG, the water tank, rubber mat and transport wheels are modular upgrades that can be retrofitted as required and in some cases interchanged with other machines in the BOMAG BP series. Every BOMAG vibratory plate is fully tested before delivery. The robust construction, selected machine components and the special base plate design combined with a matched vibration frequency deliver very high surface coverage.

Fields of application
The BP 12/50 is suitable for earthworks, asphalt construction and paving. It can be guided precisely up to walls and directly on foundations. The plate is ideal for road and pavement construction, small-scale repair and finishing work, corners and hard-to-reach areas.

Key product features and benefits
Designed for operator comfort and long service life: vibration-damped guide handle for fatigue-reduced operation; low hand‑arm vibration < 5 m/s²; fully protected V-belt and cast-in exciter to prevent loosening and reduce wear; foldable guide handle and compact dimensions for easy loading and transport; optional transport wheels and carrying handles.

Standards

• Vibration-insulated steering handle, foldable
• Detachable steering handle
• Highly wear-resistant base plate
• Automatic shutdown at low oil level
• Recoil starter
• Fully protected V-belt
• Carrying handles
• Single point lifting device
• Protective covering
• 3-2-1 Warranty
• Engine protection frame

Options

• Sprinkler system (+10kg)
• Sprinkler system 6l (+4kg/BP10/35)
• Transport wheels (+4kg)
• Plastic mat
• Tool kit
• Special painting
• Service Kit
• TOUGH WARRANTY
• Comfort guide handle

Additional notes
Further data on request. All data subject to change. Illustrations may contain optional features.

Technical specifications

• Denomination: BP 12/50
• Brand: BOMAG
• Emission stage: Stage V / CARB P.3
• Weight: 73 kg
• Engine performance: 2.6 kW
• Working width: 500 mm
• Designed for earthworks, asphalt construction and paving
• Low hand‑arm vibration < 5 m/s² (operator protection)
• Highly wear‑resistant base plate available
• Foldable guide handle for compact transport; transport wheels available as option
• Water sprinkler kit available to prevent asphalt sticking
• Exciter cast directly into machine to avoid loosening screws
