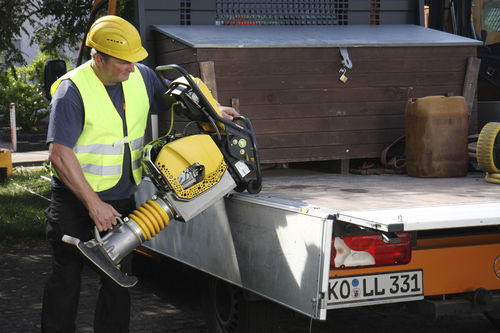

Tamping rammer BT 60

Overview
The lightest tamper in its performance class, designed for extended shifts in confined spaces. Built for professional use, the BOMAG BT 60 delivers efficient soil and asphalt compaction with low operator effort.

Fields of application
Soil and asphalt compaction in civil engineering: trenches and sewer systems, landscaping, compaction on backfill, foundations, as well as asphalt patching and repairs.

Key features

• Longer service life: Two-stage dual air filter system for maximum availability and extended engine life.
• Fully protected: Impact-resistant special plastic hood for optimized on-site damage protection and reduced repair costs.
• Safe operation: Height-adjustable, vibration-damped guide handle for fatigue-reduced working.
• Clear monitoring: Operating hours counter and tachometer with service indicator (operating-hour counter optional on some variants).
• Well-lubricated: BOMAG lubrication system for optimal oil supply to the crankcase and automatic oil level check.
• Easy handling: Optional transport wheels for quick manoeuvring on site.

At a glance
Emission stage: Stage V / CARB P.3
Weight: 58 kg
Performance: 2.8 kW
Working width: 230 mm

Standards

• Engine Protection System
  • Protective engine covering
  • Paper air filter system with two stages
  • Automatic oil level control
  • Dual fuel filter system
• Vibration-insulated steering handle
• Self-cleaning air filter housing
• Protective covering
• Single point lifting device
• Recoil starter
• Plastic castor as loading aid
• Infinitely variable frequency
• Combination of engine stop / fuel switch
• Hour / rpm meter
• 3-2-1 Warranty

Options

• Transport device with puncture-proof wheels
• Tamper foot widths (160–330 mm)
• Tamper foot extensions
• Special painting
• Tool kit
• Service kit
• Operator protection contact breaker switch
• TOUGH WARRANTY

Technical specifications

• Model name: BT 60
• Brand: BOMAG
• Emission stage: Stage V / CARB P.3
• Weight: 58 kg
• Engine performance: 2.8 kW
• Working width: 230 mm
• Air filter: Two-stage dual / paper air filter system
• Protection: Impact-resistant plastic hood / protective engine covering
• Lubrication: BOMAG lubrication system with automatic oil level check
• Controls: Tachometer and service indicator (operating hours counter optional)
