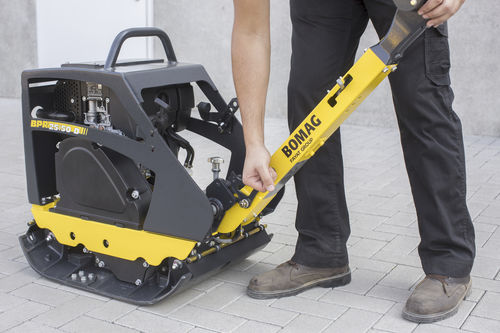

Reversible vibratory plate BPR 25/50

compacting

Overview
Reversible vibratory plate designed for soil, asphalt and paving compaction. Operating weights 135–300 kg and optional transport wheels enable easy relocation on small and medium construction sites. Models provide compaction forces from 25 to 40 kN and a working width of 500 mm.

Highlights

• Height-adjustable, low-vibration steering rod to select the optimal working position.
• Optional solid rubber transport wheels for quick movement (available for models up to 300 kg).
• Wide-opening hood and protected engine cover for easy access and reduced wear.

Fields of application
Suitable for soil compaction in civil engineering, asphalt repair and block/paving installation. Reversible vibratory plates are widely used on small to medium construction and landscaping sites where manoeuvrability and efficient compaction are required.

Standards

• Protective engine covering
• Comfort lever control
• Low-vibration, height-adjustable steering rod
• Steering rod lockable in transport and working positions
• Vibration and throttle regulation on the steering rod
• Highly wear-resistant, powder-coated base plate
• Fully protected V-belt
• Automatic decompression (BPR25/50D)
• Automatic shutdown at low oil level (BPR25/50)
• Recoil starter
• Back-up drive protection
• 3-2-1 Warranty

Options

• Sprinkler system (+13 kg)
• Transport wheels, puncture-proof (+4 kg)
• Tool kit
• Special painting
• Plastic mat
• Service kit
• TOUGH WARRANTY

Technical specifications

• Emission stage: Stage V / CARB P.3
• Weight: 140 kg
• Performance: 3.6 kW
• Working width: 500 mm
