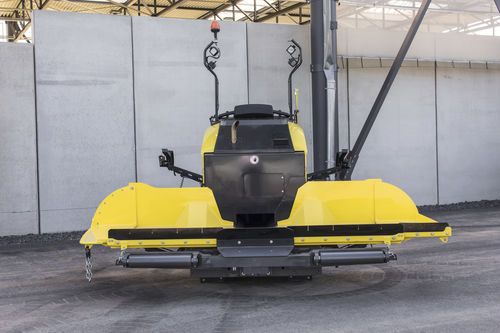

Asphalt paver BF 200 C-2

trackedfor construction equipment

Overview The BF 200 C-2 is a compact mini asphalt paver for confined site conditions. Its compact dimensions, low weight and narrow transport width allow operation in narrow paths, next to walls and between buildings. The machine is easy to operate, quiet, highly manoeuvrable and allows fast relocation.

Applications Designed for inner-city and narrow construction sites: pavement construction, asphalt paving in milled trenches, track bed asphalting, pedestrian underpasses and repair jobs where compactness and manoeuvrability are required.

Key features

• Side visibility: SIDEVIEW sliding driver’s stand for an optimal view of machine edge, hopper, auger and screed.
• ECOMODE: engine and hydraulic management for reduced fuel consumption and lower noise levels.
• Minimum paving width 1.10 m; with reduction shoe down to 0.4 m; suitable for operation in 1.2 m trenches (chain-to-chain).
• Operator ergonomics: height-adjustable control panel and double-platform concept for good visibility and compact operation.
• Compact dimensions: weight under 6 t and narrow transport width (approx. 1.3 m) for access to confined locations and loading on standard trucks.
• Fast screed heat-up: MAGMALIFE aluminium-cast heating rods for rapid and durable screed heating.

Standards

• Operator platform
• Dashboard protection
• Digital machine display
• SIDEVIEW with double steering and travel joystick
• ECOMODE
• Push rollers
• Separate hopper wing control
• Two proportionally controlled reversible cast augers with replaceable screw blades
• Rubber track pads
• Screed temperature control
• Mechanical screed lock
• Crown adjustment
• Side control of auger/scraper belts
• Tools
• Three-phase generator
• Viewing tunnel

Options

• Two-platform concept
• Integrated cleaning kit
• Asphalt steam extraction
• Special paint finish
• Biodegradable hydraulic oil
• Hydraulic height-adjustable auger
• Track scraper
• Direction rod
• Ultrasonic sensors for auger control
• Hydraulic crown adjustment
• S 200 extensions 350 mm / 600 mm
• MAGMALIFE aluminium heating plates
• Heated side plates
• Reduction shoes
• L.C.S. screed relief and traction increase system
• Height and cross-slope sensing by ultrasonic or mechanical sensors
• Fleet management BOMAG TELEMATIC
• LED working lights
• Sunroof
• Joblink data interface
• Hydraulic side flap

Technical specifications

• Emission stage: Stage V / TIER4f
• Capacity: 200 t/h
• Weight: approx. 6,000 kg
• Working width (min-max): 1,100 - 3,400 mm
• Minimum paving width: 1.10 m (reduction shoe down to 0.4 m)
• Transport width: approx. 1.3 m (depends on configuration)
• Screed technology: MAGMALIFE aluminium heating plates with aluminium-cast heating rods
