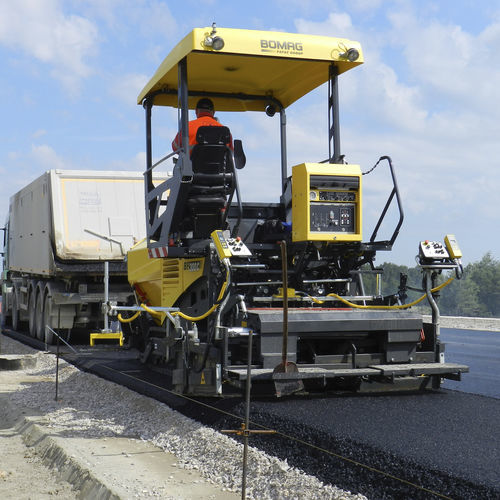

Asphalt paver BF 300 C series

crawlerfuelconstruction

Overview
Compact, powerful and reliable city paver engineered for confined construction sites. Ideal for urban road finishing where flexibility and quick setup are required.

• Powerful yet economical: 55 kW engine with ECOMODE management
• MAGMALIFE heating elements for extended service life and even heat distribution
• User-friendly operation with BOMAG SIDEVIEW for improved visibility
• Working widths up to 5 m with extensions

Key features / Functions

• Enhanced operator visibility thanks to laterally offset operator position (SIDEVIEW)
• Ergonomic controls: adjustable console and operator seat
• Fast changeover with QUICKCOUPLING
• Intelligent engine and hydraulic management (ECOMODE) to reduce fuel consumption
• Fleet management via BOMAG TELEMATIC for machine monitoring, fuel data and maintenance planning
• Rapid screed heating through MAGMALIFE (aluminium-encapsulated heating rods)
• Heating elements protected against corrosion and vibration

Associated documents

• Datasheet BF300C-2 (product datasheet PDF)
• Brochure BF300 (product brochure PDF)

Technical specifications

• Emissions level: Stage V / TIER4f
• Capacity: 300 t/h
• Weight: 9,000 kg
• Working width (min–max): 1,700 - 5,000 mm
• Standard equipment: operator platform, SIDEVIEW, swivelling and sliding driver seat, dashboard protection, hydraulically folding roof, digital machine management display, ECOMODE, individual hopper flap control, hydraulic height adjustment of auger, scrapers, 2 reversible wear-resistant cast augers with replaceable blades, 2 independent reversible conveyor belts with wear plates, rubber floor mat, LED work lights
• Screed technologies: L.C.S. load relief and traction increase system, table temperature control, MAGMALIFE aluminium heating plates, automatic screed heating, mechanical screed lock, screed break adjustment
• Main options: weather protection for operator platform, heated seat, asphalt fume extraction, central lubrication system, special paint, biodegradable hydraulic oil, hydraulic front hopper flap, spring-loaded push rollers, hydraulic screed break adjustment, heated side plates, S 340-2 extensions (300 mm, 500 mm), reduction shoe, integration of leveling systems and height/incline sensors, fleet management via BOMAG TELEMATIC, additional lighting (tower light, LED)
