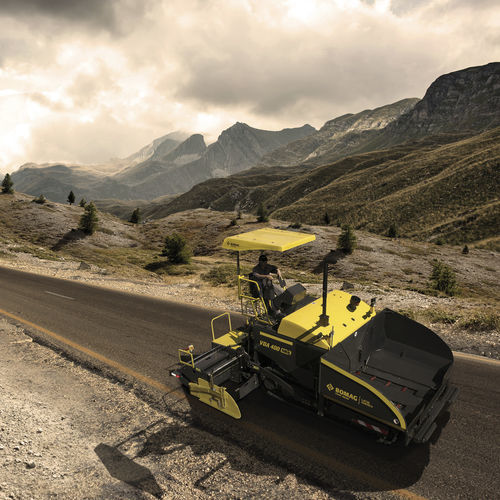

Asphalt paver VDA 400 MAX

trackedfor construction equipmentfor sloping terrain

Overview VDA MAX series pavers are manufactured in Brazil and are designed for reliable, efficient asphalt paving operations. Key machine features include a hydrostatic transmission with motors and gearboxes coupled to the sprockets, a reinforced material conveyor system for improved durability and maintenance access, and an operator station with excellent visibility and sliding lateral movement.

Fields of application Suitable for mainline and secondary road construction, slope paving and application of granular base coats. Track drive with trapezoidal solid rubber shoes ensures traction and durability on varied surfaces. The machine is equipped for continuous paving operations including night work with integrated lighting.

Highlights

• Easy maintenance: accessible maintenance points and modular switch concept to reduce downtime
• Intuitive operation: colour display with primary functions and engine diagnostics; one-button-per-function layout
• Material handling: large-capacity receiving hopper with tilting side wings and optimized flow angle; reinforced stop rollers with dedicated cleaning system
• Operator visibility: laterally movable control station and sliding seat for improved sight lines; six headlights for night operations
• Engine: Cummins QSB 4.5 TIER III – 130 HP (97 kW) with electronic fuel injection for controlled emissions and noise

Standards

• Cummins QSB 4.5 TIER III Engine - 130 HP (97 kW)
• Direct drive by tracks with rubber shoes
• Direct track drive system
• Steering system with joystick control
• Highly durable, reinforced material conveyor system
• Conveyors and helicals with material flow control via electromechanical sensors
• Laterally movable control station
• Reverse alarm
• Fiber awning
• Colour display with main functions and engine fault diagnosis
• Table with hydraulic opening
• Gas heating / LPG heating system
• 210 L fuel tank
• Complete operational visibility
• Ease of maintenance and filter access
• Hydraulically variable width (site-dependent configuration)
• Vibrators; ski with height adjustment
• Intuitive control panel (one button = one function)
• Yellow strobe beacon
• Central module with single plate; Compacting table SPF 2.15; SPF (Simple Plate Finishing)

Options

• Mechanical extension (4.05 m to 4.55 m)
• Reduction of paving width 1.4 m - 1.1 m (cut-off shoes / reduced width)
• Electronic longitudinal contact levelling (250 mm extensions)
• Electronic longitudinal levelling by contact (30 cm ski)
• Electronic longitudinal levelling by contact (6 m ski)
• Automatic longitudinal leveling via ultrasonic sensor (non-contact)
• Electronic cross-levelling via tilt (slope) sensor
• Electronic leveling control systems (e.g. MOBA)
• Combinations of longitudinal/transverse levelling sensors (contact/sonic)
• Levelling ski options (including up to 6 m single- or two-side skis)
• Tool kit; tool box
• Service kits: 250 / 500 / 1000 hour revision kits

Maintenance & Service The machine concept emphasizes simple, low-cost maintenance: each main function is assigned to an individual switch for easy replacement. Engine compartment and hydraulic components are accessible from both sides with serviceable filter locations for routine maintenance. Use of original parts and scheduled service improves availability, productivity and lifecycle cost control.
