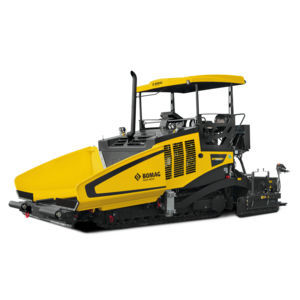

Asphalt paver BF 900 C-2 L

trackedfor construction equipmentfor vehicles

Overview
BOMAG's universal and highway-class paver delivers very high pre-compaction, large paving widths and significantly reduced fuel consumption. The BF 900 C-2 L balances high paving quality with economic efficiency: intuitive machine operation and targeted technical innovations enable the paving team to achieve consistent results. Robust construction and durable wear parts ensure long service life and low maintenance. Active engine and hydraulic control systems further reduce operating costs. Fuel and CO2 savings of up to 30% are possible, and noise emissions are significantly lower. With the BOMAG S600 screed and quick screed extensions, paving widths of up to 10 m can be achieved.

Key features and benefits

• Very high pre-compaction thanks to a heavy high-performance screed with variable vibration and tamper frequencies.
• Fuel and CO2 savings up to 30% via active engine/hydraulic control and ECOMODE.
• Robust design and long-lasting wear parts (scraper belts, distribution auger, screed plates) to reduce maintenance and repair costs.
• Quick widening with QUICK COUPLING for fast screed extension installation.
• A-PAVE Start: automatic relief/locking/return-to-floating screed for consistently level and clean asphalt surfaces.
• MAGMALIFE screed heating: aluminium-cast heating rods for uniform heat distribution, shorter heat-up times and lower energy use.
• Ergonomic operator environment: two seats with movable control panel and a simple operating concept where each control has a single function.
• Easy serviceability: good access to components and service points, long maintenance intervals, optional central lubrication.

Fields of application
Designed for high-performance paving such as motorways, airport runways and resurfacing projects, and other works requiring very large paving widths. The operator benefits from an optimal view of hopper, auger and screed and from ergonomic, clearly assigned controls that support smooth, uninterrupted asphalt paving.

Standards (selected)

• SIDEVIEW
• Driver's seat: with swivel and side-shift
• Protection, dashboard
• Hydraulic hinged roof
• Digital display for machine management
• Separate control of hopper wings
• Cleaning kit
• Hydraulic, height adjustable auger
• Track scraper
• L.C.S. screed relief and traction increase system
• Screed temperature control
• Cast heating elements
• Automatic screed heating
• Hydraulic screed control
• Crown adjustment
• 6 work lights
• Side control of auger/scraper belts
• Tools, rubber track plates, 30 kVA generator, sockets 2 x 240 V
• 2 proportionally controlled and reversible wear-resistant cast augers (replaceable screw blades)
• 2 independent and reversible scraper belts, high-wear resistant plates

Options (selected)

• Hydraulic hopper front flap
• Hydraulic/electric movable platform
• Hydraulic crown adjustment
• Hinged side plates, heated side plates
• Side windscreened platform, seat warmer
• Asphalt steam extraction
• Biodegradable hydraulic oil
• Central lubrication system
• L.C.S. half-sided
• Optional paint finish
• S 500 + S 600 extensions (250 mm, 500 mm, 750 mm, 1250 mm)
• Reduction shoe, edge shaper 45°/60°
• Light balloon, Socket 2 x 240 V
• Levelling systems: ultrasonic or mechanical height and cross-slope sensing

Technical specifications

• Model: BF 900 C-2 L
• Emission stage: China 4
• Weight: 19,500 kg
• Working width (min - max): 2,500 - 9,000 mm
• Capacity: 800 t/h
• Pre-compaction up to approx. 95% with BOMAG high-performance screed
• Key technologies: A-PAVE Start, ECOMODE, QUICK COUPLING, MAGMALIFE
