Asphalt paver BF 900 C

crawlerfor construction equipment

Overview

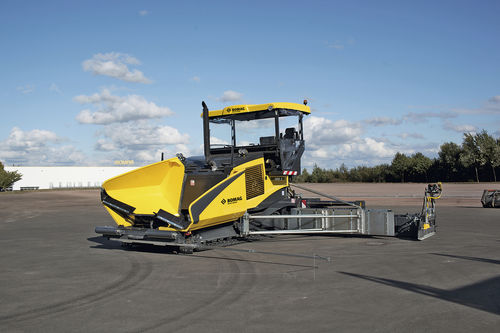

Highway paver BF 900 C is a heavy-duty crawler paver designed for high-performance road and runway paving. Engineered for projects requiring high laying capacity and pre-compaction, it delivers up to 95% pre-compaction through infinitely adjustable vibration and tamper frequency. Long crawler tracks ensure excellent traction, while BOMAG systems such as ECOMODE, MAGMALIFE, QUICK COUPLING and SIDEVIEW optimize safety, efficiency and operating costs. Hydraulically lowerable roof and fast screed fixing simplify transport.

Key features

• High pre-compaction: up to 95% via continuous vibration and tamper frequency.
• Superior traction: extended crawler tracks for stable operation.
• Screed technology: MAGMALIFE cast aluminium heating rods for fast heat-up and enhanced durability.
• Operator ergonomics: sliding operator’s stand with SIDEVIEW and adjustable console and seat.
• Fast set-up: QUICK COUPLING for rapid changeovers.
• Fuel-efficient operation: ECOMODE engine and hydraulic management.
• Fleet management: BOMAG TELEMATICS provides location and machine data.

Standards

• SIDEVIEW operator function
• Swivel and side-shift driver’s seat
• Protective dashboard
• Hydraulic hinged roof
• Digital machine management display
• Independent control of hopper wings
• Cleaning kit
• Hydraulic height-adjustable auger
• Track scraper
• L.C.S. screed relief and traction increase system
• Screed temperature control
• Cast heating elements
• Automatic screed heating
• Hydraulic screed control
• Crown adjustment
• 6 work lights
• Side control of auger/scraper belts
• Tools
• Rubber track plates
• 30 kVA generator
• Socket 2x240 V
• 2 proportionally controlled reversible wear-resistant cast augers, replaceable screw blades
• 2 independent reversible scraper belts with high-wear resistant plates

Options

• Hydraulic hopper front flap
• Hydraulic/electric movable platform
• Hydraulic crown adjustment
• Hinged side plates
• Heated side plates
• Side windscreened platform
• Seat warmer
• Asphalt steam extraction
• Biodegradable hydraulic oil
• Central lubrication system
• L.C.S. half-sided
• Optional paint finish
• S 500 / S 600 extensions: 250 mm, 500 mm, 750 mm, 1,250 mm
• Reduction shoe
• Edge shaper 45°/60°
• Light balloon
• Height and cross-slope sensing via ultrasonic or mechanical sensors

Technical specifications

• Emission stage: Stage IIIa / TIER3
• Capacity: 900 t/h
• Weight: 21,150 kg
• Working width (min–max): 2,550 - 9,000 mm
• Highest pre-compaction: up to 95% via infinite vibration and tamper frequency
• Drive/traction: extended crawler tracks for best traction
• Screed technology: MAGMALIFE cast aluminium heating rods
• Screed control: L.C.S. (Load Control System)
• Material handling: proportional control of augers and conveyor belts with ultrasonic sensors
• Power supply: 30 kVA generator and 2x240 V socket
• Transport features: hydraulically lowerable roof and fast screed fixing for safe transportation
