Asphalt paver VDA 421 MAX

rubber-tiredfor trucksfor vehicles

Overview
VDA MAX series pavers, manufactured in Brazil, are engineered for asphalt paving operations with a focus on serviceability, efficient material flow and accurate laying. The machine features a redesigned material conveyor system for increased durability and simplified maintenance, plus a laterally movable operator station and sliding seat for improved visibility.

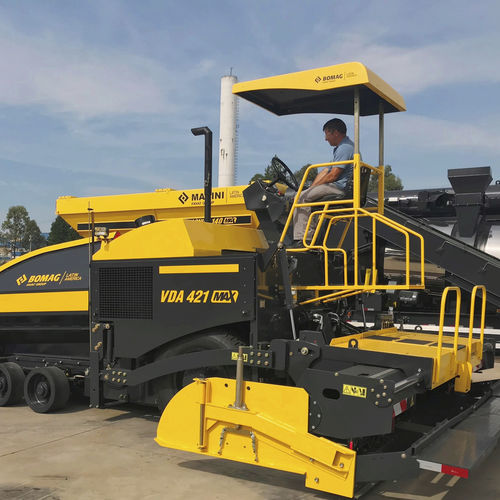

Tyre paver VDA 421 MAX
The VDA 421 MAX is a tyre paver optimized for road paving, slope work and application of granular base layers. It uses belts with trapezoidal solid rubber shoes for extended wear life, a compact turning radius for maneuverability and a hydrostatic transmission paired with motors and gearboxes coupled to the sprockets for consistent material feed.

Features

• Maintenance access: simplified access to engine and hydraulic service points to reduce downtime and speed up repairs.
• Intuitive operation: colour control panel with diagnostic display; one-button-per-function layout for straightforward operation and servicing.
• Material handling: high-capacity receiving hopper with large tilting side wings and optimized flow angles; reinforced stop rollers with dedicated cleaning system; compatibility with various unloading truck types.
• Operator visibility: laterally movable control station and strong work lighting to support day and night operations.
• Engine: Cummins QSB 4.5 TIER III with electronic fuel injection; broad parts availability.

Standards

• Cummins QSB 4.5 TIER III engine – 130 HP (97 kW)
• Hydrostatic transmission
• Steering system with steering wheel control
• Individually controlled high-capacity hoppers
• Durable material conveyor system
• Conveyors and augers with electromechanical material flow sensors
• Laterally movable operator station
• Fiber canopy
• Intuitive control panel (one button = one function)
• Work lighting
• Yellow strobe beacon
• Manual sprayer
• 210 L fuel tank
• Full visibility of the operation
• Compacting table SPF 2.15 (center module with single plate)
• Hydraulically variable screed width: 2,150 mm to 4,050 mm
• Paving width range: 2,500 mm to 4,050 mm
• Heating system (LPG)
• Vibrators
• Ski with height adjustment
• Reverse alarm
• Colour display with main functions and engine fault diagnostics
• Hydraulically opening table

Options

• Mechanical extension (4.05 m to 4.55 m)
• Reduced paving width configurations (1.4 m to 1.1 m and cut-off shoes)
• Electronic longitudinal contact levelling (extensions of 0.250 m)
• Electronic longitudinal levelling by contact with 30 cm or 6 m ski options
• Automatic longitudinal levelling via ultrasonic (non-contact)
• Electronic cross-levelling via tilt sensor
• Tool kit and service kit
• Electronic leveling control system (MOBA) and various sensor configurations (contact/sonic)
• Ski options for electronic levelling (single or double side, up to 6 m)
• Revision kits (250 h, 500 h, 1000 h)

Technical specifications

• Model: VDA 421 MAX
• Brand: BOMAG
• Emission stage: Stage IIIa / TIER 3
• Engine: Cummins QSB 4.5 TIER III, 130 HP (97 kW)
• Weight: 11,500 kg
• Working width (min–max): 2,486 – 4,707 mm
• Capacity: 400 t/h
• Fuel tank capacity: 210 L
• Transmission: Hydrostatic
• Hydraulically variable screed width: 2,150 mm to 4,050 mm
• Paving width range: 2,500 mm to 4,050 mm
• Compacting table: SPF 2.15; center module with single plate
• Material handling: high-capacity hopper with tilting side wings; conveyors and augers with electromechanical sensors
• Work lighting: multiple headlights for complete workplace illumination
• Heating: LPG / gas heated screed
• Operator station: laterally movable for improved visibility
• Control: colour display with main functions and engine diagnostics (one button = one function)
• Maintenance: easy access to engine compartment and hydraulic systems; design focused on reduced downtime
