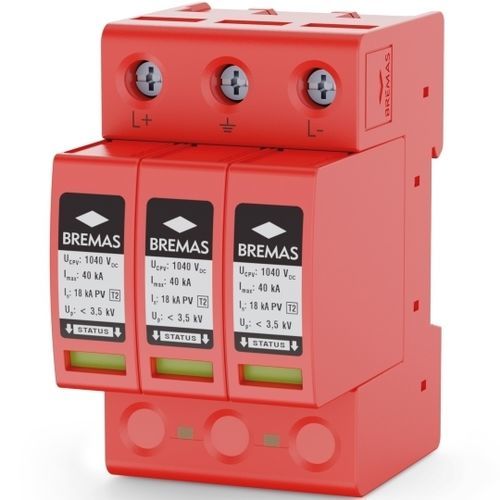

Type 2 surge protector SAPV100T2class IIfor photovoltaïc installationsDC
Add to favorites
Compare this product
Characteristics
- Type
- type 2, class II
- Applications
- for photovoltaïc installations
- Other characteristics
- DC, DIN rail
- Voltage
1,040 V
Description
Specially designed for PV applications, Bremas Surge Protective Devices (SPD) are suitable for protection against induced overvoltages.
Can be fixed to a DIN rail for quick installation, and built with a removable cartridge solution to facilitate maintenance.
• Serie : SAPV
• Rated discharge current (8/20 μs) : 18 kA
• Maximum discharge current (8/20 μs) : 40 kA
• Total discharge current (8/20 μs) : 40 kA
• Protection level : < 3,5 kV
• Remote signaling relay : No
• Surge arrester type : Type 2 / Class II
