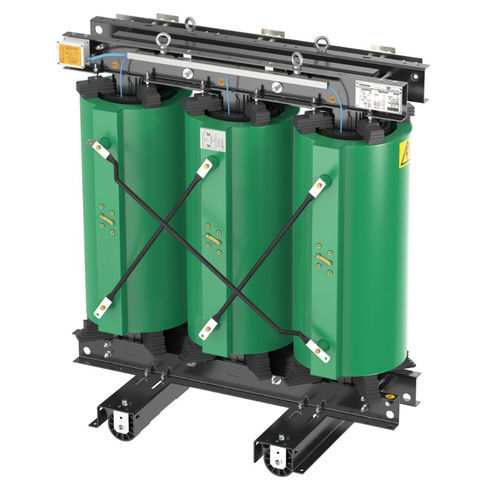

Isolation transformer HG5AIAQBApowercast resinmedium-voltage
Add to favorites
Compare this product
Characteristics
- Type
- power, isolation
- Configuration
- cast resin
- Electrical characteristics
- medium-voltage
- Norms
- IEC
- Electric power
776 W
- Output power kVA
400 kVA
(543.848462 hp)- Primary voltage
33 kV
- Secondary voltage
0 MV
- Frequency
50 Hz
Description
Product overview
Cast resin transformer with rated power 400 kVA, primary voltage 33 kV and secondary voltage 400 V. Insulation class: 36 kV. Key nominal values: Vprim = 33 kV; Vsec = 400 V; Po = 776 W; Pk = 4 950 W; Uk = 6%.
Key technical features (excerpt)
Brand: BTicino
Reference standards: IEC 60076-11; EN 50708
Rated voltage: 33 kV - 400 V
Frequency: 50 Hz
Rated power (VA): 400 kVA
Packaging / physical dimensions
Height: 1.85 m
Width: 1.00 m
Length: 1.70 m
Series
GreenT.he Cast resin transformers
Technical specifications
Cast resin transformer with rated power 400 kVA, primary voltage 33 kV and secondary voltage 400 V. Insulation class: 36 kV. Key nominal values: Vprim = 33 kV; Vsec = 400 V; Po = 776 W; Pk = 4 950 W; Uk = 6%.
Key technical features (excerpt)
Brand: BTicino
Reference standards: IEC 60076-11; EN 50708
Rated voltage: 33 kV - 400 V
Frequency: 50 Hz
Rated power (VA): 400 kVA
Packaging / physical dimensions
Height: 1.85 m
Width: 1.00 m
Length: 1.70 m
Series
GreenT.he Cast resin transformers
Technical specifications
- Nominal primary voltage: 33 kV
- Nominal secondary voltage: 400 V
- Rated power: 400 kVA
- Output power Po: 776 W
- Peak power Pk: 4 950 W
- Short-circuit voltage (Uk): 6 %
- Frequency: 50 Hz
- Standards: IEC 60076-11; EN 50708
- Series: GreenT.he Cast resin transformers
- Overall dimensions (H x W x L): 1.85 m x 1.00 m x 1.70 m
