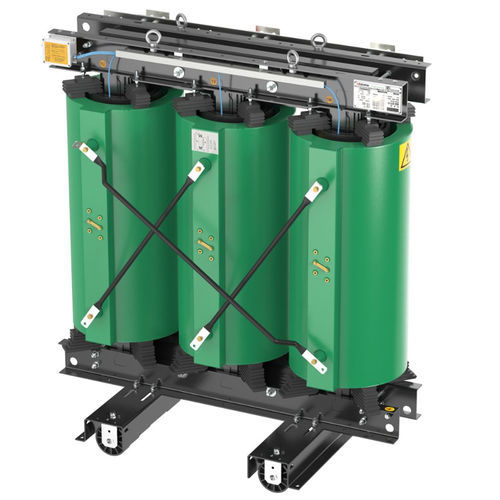

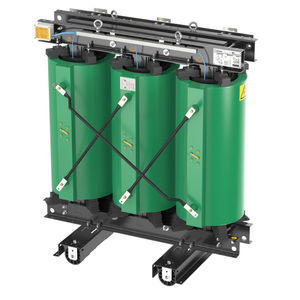

Isolation transformer HH5AIAQBApowercast resindry
Add to favorites
Compare this product
Characteristics
- Type
- power, isolation
- Configuration
- dry, cast resin
- Electrical characteristics
- low-voltage, three-phase, medium-voltage
- Norms
- IEC
- Output power kVA
500 kVA
(679.810578 hp)- Primary voltage
33 kV
- Secondary voltage
0 MV
- Frequency
50 Hz
Description
Product
Cast resin transformer GreenT.he, insulation class 36 kV — rated power 500 kVA — Vprim 33 kV / Vsec 400 V — No-load loss (Po): 933 W — Load loss (Pk): 6,193 W — Impedance voltage (Uk): 6%
Family features
Standards
IEC 60076-11 and EN 50708
Technical documentation
Installation manual available
GreenT.he catalogue available
Technical specifications
Cast resin transformer GreenT.he, insulation class 36 kV — rated power 500 kVA — Vprim 33 kV / Vsec 400 V — No-load loss (Po): 933 W — Load loss (Pk): 6,193 W — Impedance voltage (Uk): 6%
Family features
- Designed for operation in extreme environmental conditions
- Built according to EN 50708-2-1
- Eco-compatible design (Regulation 2019/1783)
- Contributes to a reduction of energy consumption
Standards
IEC 60076-11 and EN 50708
Technical documentation
Installation manual available
GreenT.he catalogue available
Technical specifications
- Brand: BTicino
- Reference standard: IEC 60076-11 and EN 50708
- Rated voltage: 33 kV / 400 V
- Frequency: 50 Hz
- Rated power (VA): 500 kVA
- Height: 1.9 m
- Width: 1.0 m
- Length: 1.75 m
- Series: GreenT.he Cast resin transformers
