Power transformer HC5AIAQBA

distributioncast resinfor industrial applications

Product overview

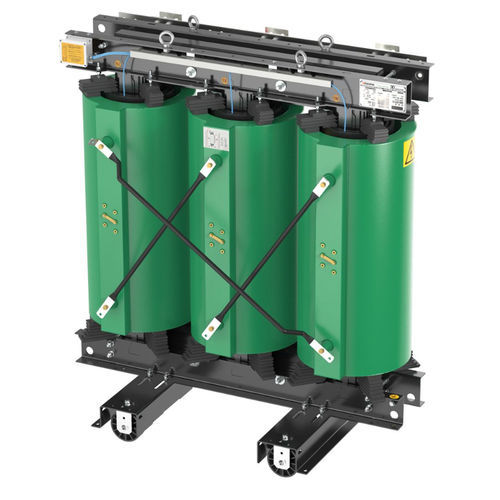

Cast resin transformer HC5AIAQBA for medium-voltage to low-voltage distribution. Insulation class 36 kV, rated power 160 kVA. Designed for industrial applications requiring safe, maintenance-minimized operation.

Key electrical parameters

• Primary voltage (Vprim): 33 kV
• Secondary voltage (Vsec): 400 V
• No-load power (Po): 414 W
• Short-circuit related power (Pk): 2860 W
• Short-circuit voltage (Uk): 6%

Technical data

• Brand: BTicino
• Reference standards: IEC 60076-11 and EN 50708
• Rated voltages: 33 kV / 400 V
• Frequency: 50 Hz
• Rated power: 160 kVA
• Height: 1.75 m
• Width: 850 mm
• Length: 1.6 m
• Series: Green T.HE

Family / highlights

• High-performance units for extreme environmental conditions
• Manufactured according to EN 50708-2-1
• Eco-compatible design compliant with Regulation 2019/1783
• Designed to reduce operational energy consumption

Technical documentation
Installation manual available. Green T.HE catalogue and product family presentation video available for download.

Characteristics / technical specifications

• Product code: HC5AIAQBA
• Type: Cast resin transformer, insulation class 36 kV
• Rated power: 160 kVA
• Rated voltage (primary/secondary): 33 kV / 400 V
• Frequency: 50 Hz
• Short-circuit voltage (Uk): 6%
• No-load power (Po): 414 W
• Short-circuit power (Pk): 2860 W
• Height: 1.75 m
• Width: 850 mm
• Length: 1.6 m
• Series name: Green T.HE
