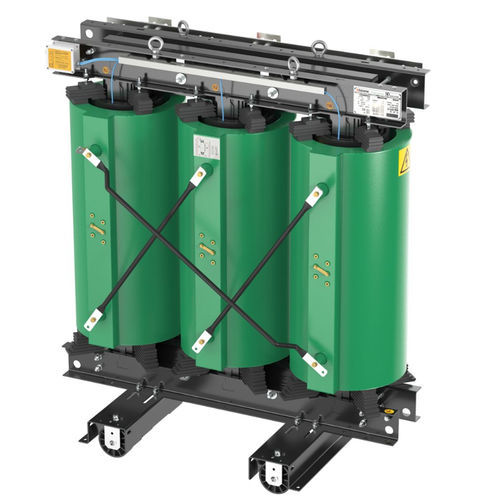

Isolation transformer HB5AIAQBApowerdistributioncast resin
Add to favorites
Compare this product
Characteristics
- Type
- power, isolation, distribution
- Configuration
- cast resin
- Applications
- industrial, for indoor service
- Electrical characteristics
- medium-voltage
- Norms
- IEC
- Other characteristics
- dry type epoxy resin
- Output power kVA
100 kVA
(135.962116 hp)- Primary voltage
33 kV
- Secondary voltage
460 V
- Frequency
50 Hz
Description
Product overview
Cast resin transformer BTicino HB5AIAQBA, insulation class 36 kV. Rated power 100 kVA, primary voltage 33 kV, secondary voltage 460 V. Suitable for medium-voltage industrial distribution and indoor installation.
Technical features (table)
Brand: BTicino
Reference Standard: IEC 60076-11 and EN 50708
Rated voltage: 33 kV - 460 V
Frequency: 50 Hz
Rated power (VA): 100 kVA
Height: 1.8 m
Width: 850 mm
Length: 1.65 m
Series: GreenT Cast resin transformers
Product details
Technical specifications
Cast resin transformer BTicino HB5AIAQBA, insulation class 36 kV. Rated power 100 kVA, primary voltage 33 kV, secondary voltage 460 V. Suitable for medium-voltage industrial distribution and indoor installation.
Technical features (table)
Brand: BTicino
Reference Standard: IEC 60076-11 and EN 50708
Rated voltage: 33 kV - 460 V
Frequency: 50 Hz
Rated power (VA): 100 kVA
Height: 1.8 m
Width: 850 mm
Length: 1.65 m
Series: GreenT Cast resin transformers
Product details
- Primary voltage (Vprim): 33 kV
- Secondary voltage (Vsec): 460 V
- No-load loss (Po): 289 W
- Short-circuit loss (Pk): 1980 W
- Impedance voltage (Uk): 6%
Technical specifications
- Brand: BTicino
- Reference Standards: IEC 60076-11, EN 50708
- Rated voltage: 33 kV / 460 V
- Frequency: 50 Hz
- Rated power: 100 kVA
- Primary voltage: 33 kV
- Secondary voltage: 460 V
- No-load loss (Po): 289 W
- Short-circuit loss (Pk): 1980 W
- Impedance voltage (Uk): 6%
- Dimensions (H x W x L): 1.8 m x 850 mm x 1.65 m
- Series: GreenT Cast resin transformers
- Product code: HB5AIAQBA
