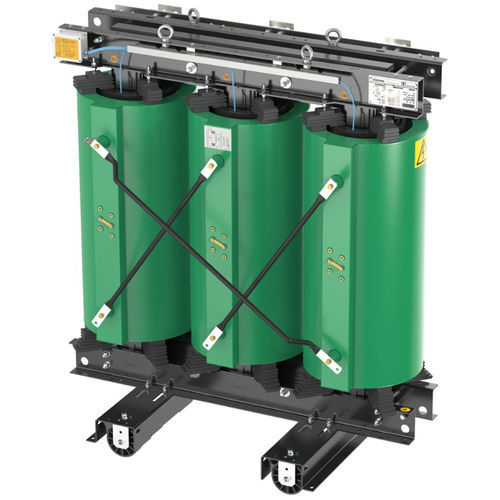

Isolation transformer HF5AIAQBApowerdistributioncast resin
Add to favorites
Compare this product
Characteristics
- Type
- power, isolation, distribution
- Configuration
- dry, cast resin
- Applications
- for electrical networks
- Electrical characteristics
- low-voltage, medium-voltage
- Norms
- IEC
- Other characteristics
- dry type epoxy resin
- Electric power
641 W
- Output power kVA
315 kVA
(428.280664 hp)- Primary voltage
33 V
- Secondary voltage
400 V
- Frequency
50 Hz
Description
Overview
Cast-resin dry-type transformer for medium-voltage to low-voltage distribution. Insulation class 36 kV. Rated power 315 kVA. Designed for primary voltage 33 kV and secondary 400 V at 50 Hz. Series: GreenT cast resin transformers by BTicino.
Technical features
Brand: BTicino
Reference standards: IEC 60076-11 and EN 50708
Rated voltage: 33 kV / 400 V
Frequency: 50 Hz
Rated power (VA): 315 kVA
Dimensions: Height 1.85 m, Width 1.00 m, Length 1.70 m
Additional performance data
Primary voltage (Vprim): 33 kV
Secondary voltage (Vsec): 400 V
Po: 641 W
Pk: 4264 W
Short-circuit voltage (Uk): 6%
Technical specifications
Cast-resin dry-type transformer for medium-voltage to low-voltage distribution. Insulation class 36 kV. Rated power 315 kVA. Designed for primary voltage 33 kV and secondary 400 V at 50 Hz. Series: GreenT cast resin transformers by BTicino.
Technical features
Brand: BTicino
Reference standards: IEC 60076-11 and EN 50708
Rated voltage: 33 kV / 400 V
Frequency: 50 Hz
Rated power (VA): 315 kVA
Dimensions: Height 1.85 m, Width 1.00 m, Length 1.70 m
Additional performance data
Primary voltage (Vprim): 33 kV
Secondary voltage (Vsec): 400 V
Po: 641 W
Pk: 4264 W
Short-circuit voltage (Uk): 6%
Technical specifications
- Brand: BTicino
- Series: GreenT cast resin transformers
- Insulation class: 36 kV
- Rated power: 315 kVA
- Rated voltage: 33 kV / 400 V
- Frequency: 50 Hz
- Primary voltage (Vprim): 33 kV
- Secondary voltage (Vsec): 400 V
- Po: 641 W
- Pk: 4264 W
- Short-circuit voltage (Uk): 6%
- Dimensions: Height 1.85 m, Width 1.00 m, Length 1.70 m
- Reference standards: IEC 60076-11 and EN 50708
