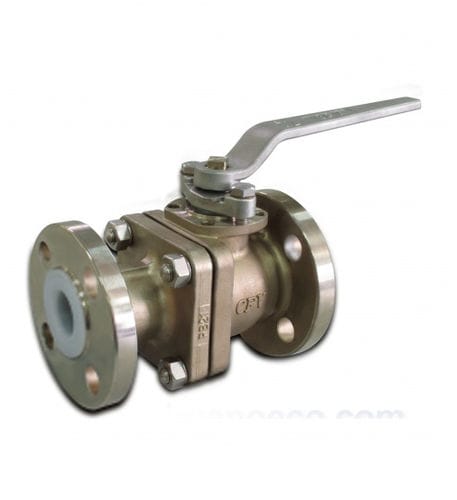

ball valve / lever / control / for liquid food products and beverages
PB 21

{{requestButtons}}

Characteristics

  • Type:

    ball

  • Operation:

    lever

  • Function:

    control

  • Media:

    for liquid food products and beverages, for chlorine

  • Body:

    PFA-lined, stainless steel

  • Applications:

    for the chemical industry, for food applications, for heating, HVAC, for the petroleum industry, for pharmaceutical applications

  • Other characteristics:

    ANSI

  • Temperature:

    Max.: 160 °C (320 °F)

    Min.: -29 °C (-20 °F)

  • Pressure:

    Max.: 250 psi

    Min.: 0 psi

  • DN:

    Max.: 4 in

    Min.: 0.5 in

Description


Size range : 1/2’’~4’’
Pressure grade : ANSI CLASS 150
Operation temperature : -29°C~+160°C
Valve body design : ASME B16.42
Maximum operating pressure 250psi

BUENO's PFA Lined Ball valves are commonly used in pulp and paper operations, Chlorine water, chlorine dioxide, sodium hypochlorite and sulphuric services.
