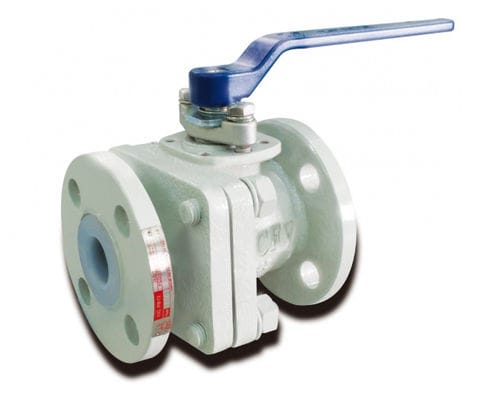

ball valve / lever / control / for water
PB12D

{{requestButtons}}

Characteristics

  • Type:

    ball

  • Operation:

    lever

  • Function:

    control

  • Media:

    for water, for liquid food products and beverages, for chemicals

  • Body:

    flange, PFA-lined

  • Applications:

    for the food industry, heating, HVAC, for the petroleum industry, for pharmaceutical applications

  • Other characteristics:

    ISO

  • Temperature:

    Min.: -29 °C (-20 °F)

    Max.: 160 °C (320 °F)

  • Pressure:

    Min.: 0 psi

    Max.: 250 psi

  • DN:

    Min.: 0.5 in

    Max.: 4 in

Description

Size Range : 1/2"~4"
Pressure grade : ANSI CLASS 150
Operating temperature : -29°C~+160°C
Valve body design : ASME B16.42
Maximum operating pressure : 250psi
Joints : flange ASME B16.5 CLASS 150 RF
Face to Face : PB12D acc. to ASME B16.10
2~3 mm of thickness for PFA lining
Tight Fit between PFA liner and stainless body throudh dovetail design
Double sealing valve body design
Easy automation with ISO 5211 acuator mounting pad

►Application for PFA Lined FCD Ball Valves - #150
Industrial Inorganic Chemicals
Industrial Organic Chemicals
Alkali’s & Chlorine
Detergent production
Bromine production
Nitrogenous & Phosphorus Fertilizers
Pharmaceutical preparation
Petroleum refining
Metal & Mining industry
Plant Protective Agent production
Pulp, Paper
Water Treatment
Sulfur recovery
Food processing
Sugar industry
Corn industry
HVAC - Heating, ventilation and air confitioning
Petrochemical
Semi-conductor
