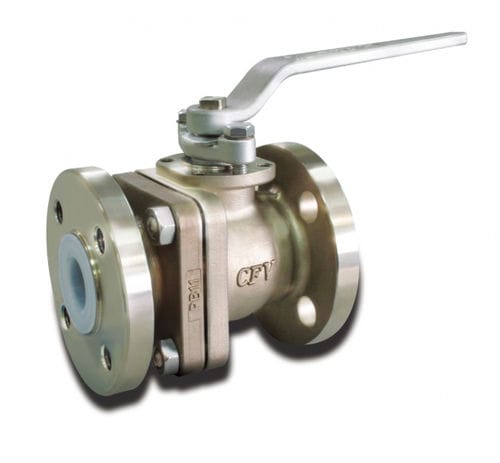

ball valve / lever / for water / for liquid food products and beverages
PB12

{{requestButtons}}

Characteristics

  • Type:

    ball

  • Operation:

    lever

  • Media:

    for water, for liquid food products and beverages, for chemical products

  • Body:

    flange, PFA-lined, stainless steel

  • Applications:

    for the chemical industry, for the food industry, HVAC, for the petroleum industry, for pharmaceutical applications

  • Other characteristics:

    ISO

  • Temperature:

    Min.: -29 °C (-20 °F)

    Max.: 160 °C (320 °F)

  • Pressure:

    Min.: 0 psi

    Max.: 250 psi

  • DN:

    Min.: 0.5 in

    Max.: 4 in

Description

PFA Lined Stainless Steel Ball Valves (Standard Pattern)- #150
A351-CF8 + PFA (Fluoropolymer) Liner

Size range : 1/2’’ ~ 4’’
Pressure grade : ANSI CLASS 150
Operation temperature : -29°C~+160°C
Valve body design : ASME B16.42
2~3 mm of thickness for PFA lining wall
Maximum operating pressure 250psi
Tight Fit between PFA liner and stainless body throudh dovetail design
Double sealing valve body design
Easy automation with ISO 5211 acuator mounting pad

►Application for PFA Lined Stainless Steel Ball Valves - #150
Industrial Inorganic Chemicals
Industrial Organic Chemicals
Alkali’s & Chlorine
Detergent production
Bromine production
Nitrogenous & Phosphorus Fertilizers
Pharmaceutical preparation
Petroleum refining
Metal & Mining industry
Plant Protective Agent production
Pulp, Paper
Water Treatment
Sulfur recovery
Food processing
Sugar industry
Corn industry
HVAC - Heating, ventilation and air confitioning
Petrochemical
Semi-conductor
