Diaphragm pump LIBELLULA 2 - 4"
for industrial wateracidslurry

Diaphragm pump - LIBELLULA 2 - 4" - Caffini Cipriano s.r.l. - for industrial water / acid / slurry

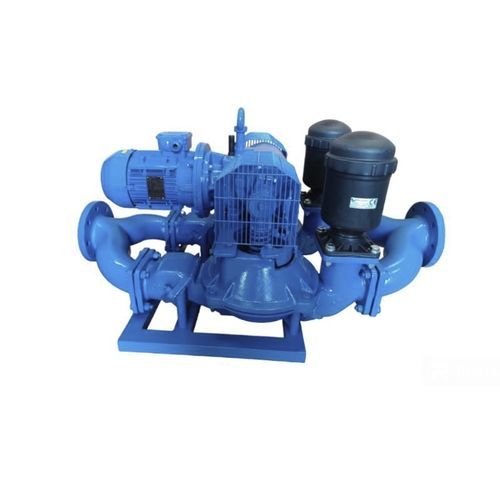

Diaphragm pump - LIBELLULA 2 - 4" - Caffini Cipriano s.r.l. - for industrial water / acid / slurry
Diaphragm pump - LIBELLULA 2 - 4" - Caffini Cipriano s.r.l. - for industrial water / acid / slurry - image - 2
Diaphragm pump - LIBELLULA 2 - 4" - Caffini Cipriano s.r.l. - for industrial water / acid / slurry - image - 3
Diaphragm pump - LIBELLULA 2 - 4" - Caffini Cipriano s.r.l. - for industrial water / acid / slurry - image - 4
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Fluid
for industrial water, acid, slurry, oil
Operation
with electric motor
Priming
self-priming
Mobility
stationary, mobile
Domain
industrial
Applications
transfer, discharge, drainage, treatment, for low-pressure applications, for meat
Material
cast iron, aluminum
Fluid specification
for aggressive media, for abrasive fluids, for corrosive fluids, for solids-laden fluids, for viscous fluids, for used oil
Voltage
400 V, 230 V
Protection level
abrasion-resistant, maintenance-free, corrosion-resistant, oil-resistant, IP55
Other characteristics
spring, lubricated, dry
Flow

Max.: 32 m³/h
(1,130.06934 ft³/h)

Min.: 0 m³/h
(0 ft³/h)

Head

Max.: 15 m
(49'02" )

Input diameter

Max.: 100 mm
(3.937 in)

Output diameter

Max.: 100 mm
(3.937 in)

Description

Dry-running capability. Rapid dry self-priming up to a depth of 7 meters in a matter of seconds. No seal or rotating part in contact with the pumped liquid. Can be used where there are abrasive or acid fluids. Wide passage for solid bodies (50 mm). Flow rate proportional to number of diaphragm pulses. Rigid self-lubricated connecting rod or with spring (on demand). BUILDING MATERIALS Parts in contact with liquid: aluminium, cast iron, Rilsan plastic coating. Parts not in contact with liquid: cast iron. Diaphragms and valves: Neoprene, Dutral/Tpv Sarlink, Hypalon, Viton, Oil proof Tpv/nitrilic rubber, Non-Toxic rubber.
