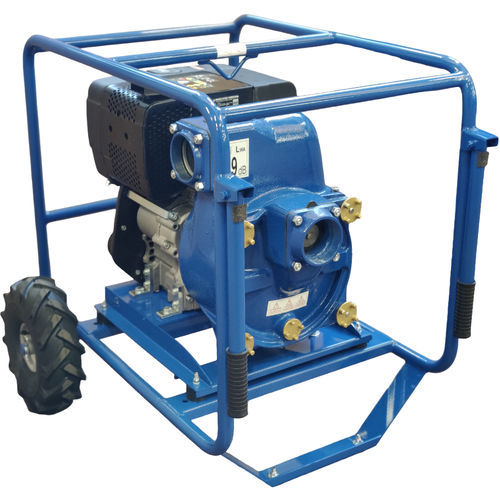

Turbine pump TRASHLIB - 3"for wastewatergasoline engineself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- turbine
- Fluid
- for wastewater
- Operation
- gasoline engine
- Priming
- self-priming
- Mobility
- stationary, mobile
- Domain
- industrial, for the construction industry, for marine applications
- Applications
- for transfer, drain, outlet
- Material
- cast iron, aluminum, bronze, brass
- Protection level
- oil-resistant, IP55
- Other characteristics
- suction, mechanical, with mechanical seals, lubricated
- Flow
Max.: 100 m³/h
(3,531.46667 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Head
Max.: 28 m
(91'10" )- Power
8.5 ch
(8.5 hp)- Input diameter
Max.: 80 mm
(3.15 in)- Output diameter
Max.: 80 mm
(3.15 in)
Description
Pump body: made of top quality aluminium UNI 3600, GALSI 5.
Volute and impeller made of abrasion resistant G25 cast iron.
Easy-to-replace cast iron wear plate with rubberized coating that is anti-abrasive and oil-resistant.
Balanced impeller.
Easy-to-replace flanged aluminium suction inlet and delivery outlet with BSP or NTP female thread.
Lubricated mechanical seal made of silicon carbide.
The cover fixing handles and the water fill/drain plugs of the pump body are made of bronze.
Catalogs
No catalogs are available for this product.
See all of Caffini Cipriano s.r.l.‘s catalogsOther Caffini Cipriano s.r.l. products
