Hydraulic press 3850

manualcalibrationdouble-column

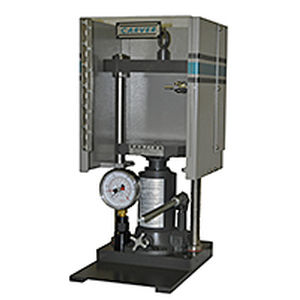

(Model Mini C) Twelve ton manual, two-column hydraulic press with 6" x 6" square platens. Compact and portable, requiring less bench space than our Model C. This press is ideal for constricted bench space or glove box applications, as well as field work. It features adjustable daylight, steel construction for rigid precision and includes safety shield for operator protection. Easy to-read dual scale analog gauge, reading in pounds force and metric tons. (picture shown with analog gauge) Specifications of the Bench Top Manually Unheated Mini C 3850 Model Press: Manually operated Two (2) fully threaded columns 6” x 6” work area Light gray safety shield Dark gray frame Dimensions: 12”L-R x 16”F-B x 25”H (uncrated) Weight: 125 pounds (uncrated) Available Options: Force Calibration Certificate using equipment traceable to NIST (part# 1525.00001) [each] Floor stand 19"L-R x 19"F-B x 30"H Wt 125# (catalog #223171D) Floor stand 36"L-R x 26"F-B x 30"H W/6" Casters Wt 260# (catalog #223215C) KBr buffer plate with centering grooves, recommended for use with dies (catalog #5021) Set of two (2) 6"x 6" Hardened Steel Plates (catalog #5023) (recommended if solid smooth surface presses) 12 ton hydraulic unit repair kit (catalog #3729) Carver Special Hydraulic Fluid (Oil) (part #2170) Two gauge manifold (catalog #2096-1CE for Mini C)
