Hydraulic press 3851
manualcalibrationdouble-column

hydraulic press
hydraulic press
Add to favorites
Compare this product


Characteristics

Operation
hydraulic, manual
Function
calibration
Structure
double-column
Other characteristics
bench-top
Applications
laboratory
Force

12 tf, 25 tf, 30 tf

Opening

Min.: 1 in

Max.: 18 in

Description

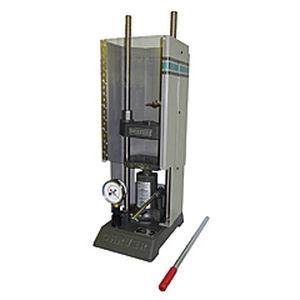

(Model C) Twelve ton, manual, two-column hydraulic lab press. Similar to a Mini C, however with a much larger daylight opening up to 18" and heavier construction. Easy-to-read dual scale analog gauge, reading in pounds force and metric tons. (picture shown with analog gauge) Specifications of the Bench Top Manually Unheated Model C 3851 Press: Manually operated Two (2) fully threaded columns 6” x 6” work area 0-24,000 lb Analog pressure gauge, reading in 200 lb increments (digital gauge also available) Light gray safety shield Dark gray frame Weight: 200 pounds (uncrated) Available Options: Force Calibration Certificate using equipment traceable to NIST (part# 1525.00001) [each] Floor stand 19"L-R x 19"F-B x 30"H Wt 125# (catalog #223171D) Floor stand 36"L-R x 26"F-B x 30"H W/6" Casters Wt 260# (catalog #223215C) KBr buffer plate with centering grooves, recommended for use with dies (catalog #5021) Set of two (2) 6" x 6" Hardened Steel Plates (catalog #5023) (recommended if solid smooth surface presses) 12 ton hydraulic unit repair kit (catalog #3729) Carver Special Hydraulic Fluid (Oil) (part #2170) Two gauge manifold (catalog #2096CE)
