Characteristics

  • Operation:

    hydraulic, manual

  • Function:

    calibration

  • Other characteristics:

    bench-top, laboratory, 4-column

  • Opening:

    Max.: 10 in

    Min.: 0 in

Description

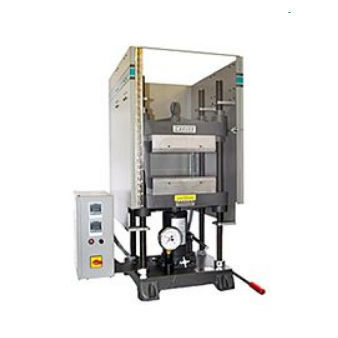

(Model 25-12H) Twenty-five ton, manual, four-column hydraulic lab press with digital heated platens. Daylight opening adjustable to 9-1/2". Easy-to-read dual scale analog gauge, reading in pounds force and metric tons. Electrically heated platens for temperatures up to 650 deg F (343 C upon request) with digital controller per platen. (picture shown with analog gauge)

Specifications of the Bench Top Manually Heated Model 25-12H (3856) Press:
Manually operated
Clamping force 25 tons
Daylight opening 0" – 9-1/2" (Factory set at 4-1/2”)
Stroke 6-1/2”
Four (4) fully threaded columns
Heated platen package, including:
Two (2) 12”x 12” electrically heated steel platens
2600 watts per platen
Temperature range up to 650 deg F
One (1) digital temperature controller per platen
0-50,000 lb Analog pressure gauge, reading in 500 lb increments (digital gauge also available)
230/1 supply voltage FLA 22
Light gray safety shield
Dark gray frame
Electrical disconnect (non-fused)
Dimensions: 29”L-R x 27”F-B x 42”H (uncrated)
Weight: 805 pounds (uncrated)
Available Options:
Manual cooling including hoses (catalog #3856.4021)
Force Calibration Certificate using equipment traceable to NIST (part #1525.00001) [each]
Temperature Calibration by instruments traceable to NIST (part #1525.00003) [per digital controller]
Floor stand 19"L-R x 19"F-B x 30"H Wt 125# (catalog #223171D)
Floor stand 36"L-R x 26"F-B x 30"H W/6" Casters Wt 260# (catalog #223215C)
Manifold Kit for Cooling Hoses (part #5604)
25 ton hydraulic unit repair kit (catalog #3730)
Carver Special Hydraulic Fluid (Oil) (part #2170)
Two gauge manifold (catalog #2096CE)
