Hydraulic press 4126
manualcalibration4-column

hydraulic press
hydraulic press
Add to favorites
Compare this product


Characteristics

Operation
hydraulic, manual
Function
calibration
Structure
4-column
Other characteristics
bench-top
Applications
laboratory
Force

25 tf

Opening

3 in

Description

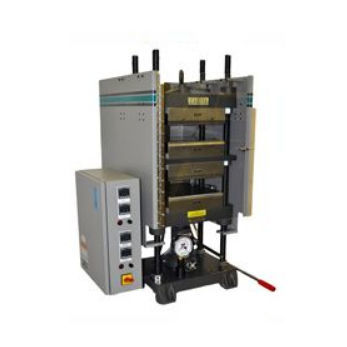

(Model 25-12-2H) Twelve ton, manual, four-column hydraulic lab press with digital heated platens. Same press as No. 3856 except has four electrically heated platens with two 3" daylights. Optional water cooled platens are available. Fully guided moving platen assures parallelism over 12" x 12" surface. Easy-to-read dual scale analog gauge, reading in pounds force and metric tons. Electrically heated platens for temperatures up to 650 deg F (343 C upon request) with one digital controller per platen. (picture shown with analog gauge) Specifications of the Bench Top Manual Heated Model 25-12-12H (4126) Press: Manually operated Clamping force 25 tons Daylight opening 2 @ 3" Stroke 6-1/2” Four (4) fully threaded columns Heated platen package, including: Both openings heated Four (2) 12” x 12” electrically heated steel platens 2600 watts per platen Temperature range up to 650 deg F One (1) digital temperature controller per platen 0-50,000 lb Analog pressure gauge, reading in 500 lb increments (digital gauge also available) 230/1 supply voltage FLA 46A Light gray safety shield Dark gray frame Electrical disconnect (non-fused) Dimensions: 29”L-R x 27”F-B x 46”H (uncrated) Weight: 1,075 pounds (uncrated) Available Options: Manual cooling including hoses; both openings heated and cooled (catalog #4126.4021) Laminating style; top heated and bottom cooled (catalog #4126.4022) Force Calibration Certificate using equipment traceable to NIST (part# 1525.00001) [each] Temperature Calibration by instruments traceable to NIST (part# 1525.00003) [per digital controller] Floor stand 19"L-R x 19"F-B x 30"H Wt 125# (catalog #223171D)
