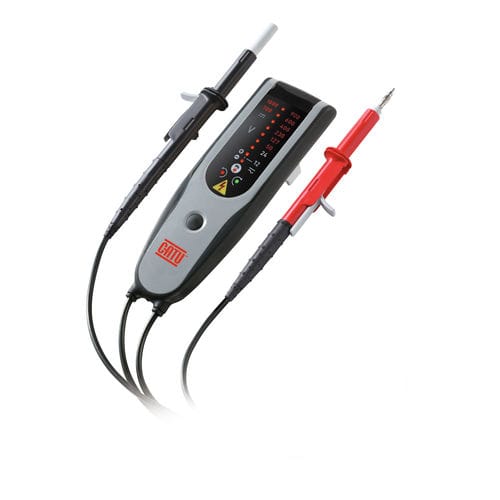

Voltage detector MS-918 series

phasepolarizationelectronic

Application: Check the presence of voltage. Checks voltage levels from 12 to 900 V AC, 12 to 1 000 V DC (according to models). Sound and light continuity for a non-live circuit (threshold of 80 Ω). Search for the polarities of a DC circuit. Unipolar phase identification. Phase rotation detection check (two-wire method). For indoor / outdoor use. Features: Fitted with IP2X test lead points with retractable trigger tips (MS-918-PG) or retractable sleeves (MS-918 and MS-918-ET). Test lead points Ø 2 mm L: 19 mm (MS-918-L) Total safety with hazardous voltage indicator light (> 50 V). Protection level: IP65/IK06. Self test button to discern the verification of the good functioning and the continuity function. Completely modular and adjustable to eclipse sockets. Equipped with a lighting lamp at the measuring point. LED display. Composition: MS-918-PG, MS-918-ET: supplied with soft carrying case and belt loop Réf. M-87285.
