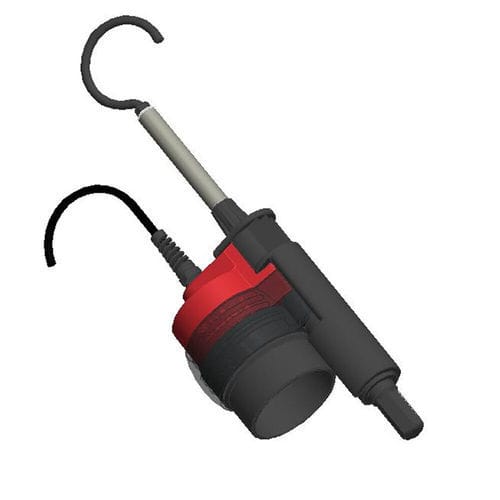

Voltage detector CL-6-100-30000

high-voltagelow-voltagemagnetic

Presentation
Bipolar DC voltage detector for verification of absence/presence of voltage in low/very-low DC voltage ranges, intended for indoor laboratory and workshop environments.

Application

• Bipolar detector for DC voltage: 100 to 30,000 V DC.
• Low detection threshold set at 100 V to identify voltages above very-low DC voltage limits.
• For indoor use only (laboratory and workshop installations).
• Voltage presence indicated by six red LEDs and an audible signal.
• Integrated functional check validates all detector functions:
• Place the magnetic shoe of the handle on the rail and short the assembly by contacting the magnetic handle with the contact hook;
• Press the test button: six red LEDs illuminate and the audible signal sounds;
• Release the test button: six green LEDs light momentarily.

Characteristics

• Indication of voltage presence by:
  • Six red LEDs
  • Audible signal (60 dB(A) at 2 m)
• Contact electrode: 380 mm
• Overall detector length: 840 mm
• Indication group: III

Composition

• Two elements with removable antennas connected by a 1.9 m cable.
• One transport case.

Standards
Designed in accordance with IEC 61243-2

Table - Reference / DC operating voltage / Mass (kg)
Reference | DC operating voltage | Mass (kg)
CL-6-100-30000 | 100–30,000 V | 4.3

Technical characteristics / specifications

• Voltage range: 100 to 30,000 V DC
• Low detection threshold: 100 V
• Presence indication: 6 LEDs (red) + audible signal (60 dB(A) at 2 m)
• Contact electrode: 380 mm
• Overall length: 840 mm
• Indication group: III
• Configuration: two elements with removable antennas joined by 1.9 m cable
• Accessories: transport case
• Mass: 4.3 kg
• Designed according to IEC 61243-2
