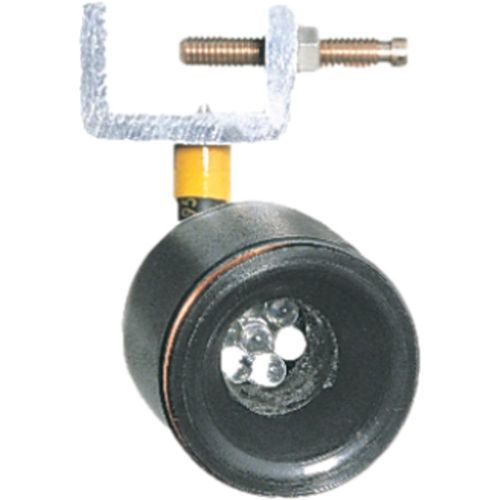

Photoelectric voltage sensor CL-40010

electro-opticalmedium-voltagenon-contact

Product overview
Permanent voltage presence indicator for indoor use. Single-pole design with luminous signalling by 7 LEDs; housing external diameter 40 mm, overall length 110 mm, voltage range 5–75 kV.

Application

• Permanently illuminated voltage presence indicator for indoor use to detect live conductors in medium/high voltage installations.

Features

• Single-pole indicator for voltage range from 5 to 75 kV.
• Housing mounted on an articulated rod to adjust the orientation of the LEDs.
• Mounting bracket compatible with round conductors Ø 5 to 20 mm and flat bars thickness 1 to 20 mm.
• Luminous signalling by 7 LEDs for clear visual detection.
• Outside diameter of the housing: 40 mm; overall dimensions: ø 40 × L110 mm; weight: 0.23 kg.

Composition

• Packed by 3 in cardboard box.

Technical table
Reference | Dimensions (mm) | Weight (kg) | Voltage
CL-40010 | ø 40 x L.110 | 0.23 | 5 - 75 kV

Technical specifications

• Model: CL-40010
• Type: Permanent voltage presence indicator (single-pole)
• Voltage range: 5 - 75 kV
• Outside diameter (housing): 40 mm
• Overall dimensions: ø 40 x L.110 mm
• Weight: 0.23 kg
• Luminous signalling: 7 LEDs
• Housing orientation: articulated rod for LED orientation adjustment
• Mounting bracket compatibility: round conductors Ø 5 to 20 mm; plates thickness 1 to 20 mm
• Packing: packed by 3 in cardboard box
