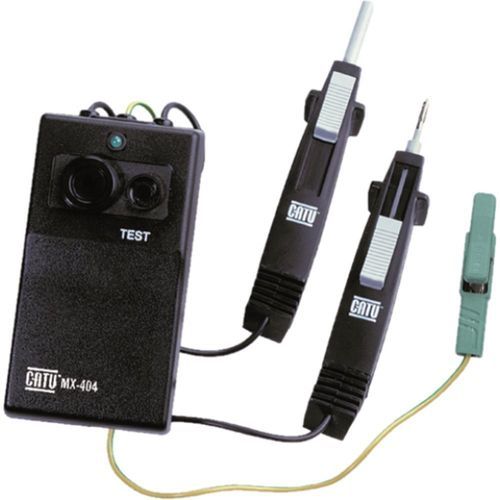

Comparator MX-404

Product
Sound phase comparator for VDS/VIS. Device to establish concordance between two phases, designed for high- and medium-impedance capacitive voltage dividers (HR-MR). Suitable for connection to test points of VIS or VDS indicators or their interfaces. Not compatible with Schneider Electric type V2 cells.

Application

• Establish concordance relations between two phases.
• Connects to test points of VIS or VDS indicators or their interfaces; interoperable with indicators such as CL-495-3 and CL-497-00.
• Operates with separable capacitive voltage dividers (HR-MR).
• Not suitable for Schneider Electric type V2 cells.

Features

• Designed for high and medium impedance voltage dividers (HR - MR).
• Indications on connection:
  • Audible signal when a significant phase shift exists between the two phases.
  • No audible signal and illumination of the green LED when phases are in concordance.
• Degree of protection: IP20.
• Probe protection: IP2X.

Standards
IEC 61958 / IEC 61243-5

Table
Reference | Dimensions (mm) | Use | Weight (kg)
MX-404 | 145 x 80 x 42 | Indoor/Outdoor | 0.3

Technical specifications

• Model: MX-404
• Function: Sound phase comparator for VDS/VIS
• Standards: IEC 61958, IEC 61243-5
• Applications: establish concordance between two phases; connection to VIS or VDS indicators or their interfaces; works with separable capacitive dividers
• Limitations: Not compatible with Schneider Electric type V2 cells
• Designed for: high and medium impedance voltage dividers (HR - MR)
• Indicators: audible signal for phase shift; green LED when no phase difference
• Degree of protection: IP20
• Probe protection: IP2X
• Contents: 1 comparator unit, 2 test probes, 1 crocodile clip
• Dimensions: 145 x 80 x 42 mm
• Weight: 0.3 kg
