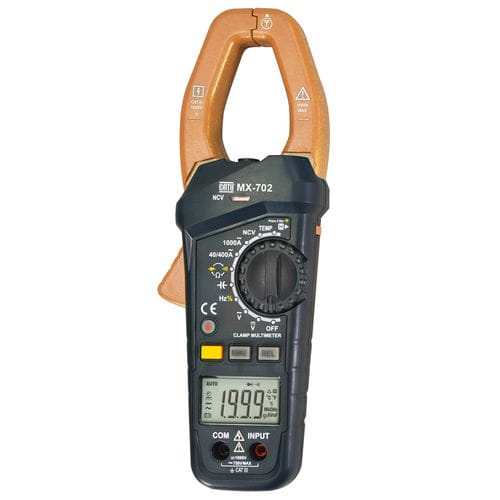

Digital clamp multimeter MX-702
portable1000 V1000 A

digital clamp multimeter
digital clamp multimeter
digital clamp multimeter
Add to favorites
Compare this product

Go to the CATU website for more information

Characteristics

Display
digital
Form
portable
Max voltage
1000 V
Max current
1000 A
Safety rating
cat III
Additional features
with thermometer
Power supply
AAA LR03 batteries
Other characteristics
AC/DC, autorange
Max DC voltage

Max.: 1,000 V

Min.: 4 V

Max AC voltage

Max.: 750 V

Min.: 4 V

Max AC current

Max.: 1,000 A

Min.: 40 A

Max resistance measure

Max.: 40,000,000 Ohm

Min.: 400 Ohm

Process temperature

Max.: 1,000 °C
(1,832 °F)

Min.: -20 °C
(-4 °F)

Length

243 mm
(9.57 in)

Width

87 mm
(3.43 in)

Height

44 mm
(1.73 in)

Weight

374 g
(13.19 oz)

Description

Application: Digital clamp meter compact (3 ½ digit) with autorange for measuring DC and AC voltage, AC current, resistance, diode, continuity and temperature. AC current: 40 V – 1 000 A. AC voltage: 4 V – 750 V. DC voltage: 4 V – 1 000 V. Resistance : 400 Ω - 40 MΩ. Continuity: buzzer (>150 Ω). Features: Cat III 600 V. Display: 3 3/4 digit LCD with a max. reading of 1999. Polarity: auto polarity indication. Automatic zeroing function. Jaw opening capability: about 50 mm. Battery: 3 x 1,5 V AAA batteries. Low battery indication. Operation temperature: -20°C / 1 000°C. Storage temperature: -30°C / 60°C. Supplied with a soft carrying case.
