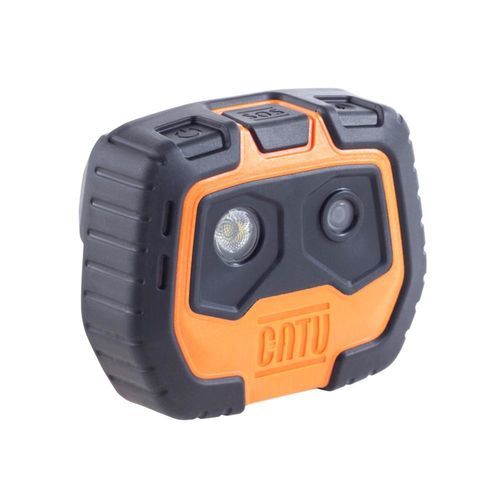

Flashing safety device I-CAT01

lone workerwireless

Product overview
Portable multifunction safety device combining a proximity voltage alarm, lone worker alert device (LWAD), high-intensity LED lamp and SOS function. Supplied with accessories for helmet and clothing/harness attachment and protected by a shock-proof transport case.

Standards

• IP65
• IK07
• CE
• CEM: directive 2014/30/UE

Applications

• Alert the operator in the proximity of energized installations.
• Adjustable lamp intensity to light the working area.
• Alarm system to increase lone worker protection (via subscription).
• SOS signals to locate a lone worker in danger.

Features

• Built-in Auto-Test function
• Proximity Voltage Alarm:
  • Detection range: 1 to 500 kV AC, 50/60 Hz.
  • Alarm-signal distance: based on the voltage level.
  • Detection type: omnidirectional via electric field in the air.
  • Built-in delay: approx. 1 s (protection against false alarms).
  • Alert signals: visual and audible.
  • Sound-Mute feature: via CAT'SAFE Powered by Beepiz app (subscription required) for long-stay working.
• Lone Worker Alert Device (LWAD):
  • Connectivity: Bluetooth® (BLE 5.3).
  • Smartphone operating systems: Android and iOS.
  • App via subscription: CAT'SAFE Powered by Beepiz.
  • 6 types of alerts.
• Lamp:
  • Type: high intensity LED.
  • Modes: 30%, 60%, 100%, Flash, OFF.
  • Light output (at 100%): 130 lm.
• SOS function:
  • Audible and visual Morse signals for rapid location of the user.
• Battery:
  • Replaceable.
  • Type: 18650 Li-ion.
  • Life-time in use: 7 h (all functions activated).
  • Charging: USB-C or external charger.

Composition

• Main device (Proximity Voltage Alarm, Lone Worker Alert, Lamp, SOS function)
• Supplied with:
  • Quick start guide
  • Helmet mounting strap
  • Adhesive helmet attachments (2 types)
  • Clip for clothing/harness attachment
  • Battery (in the main device)
  • USB-A/USB-C charging cable
  • Shock-proof case for transport, protection and storage

Technical table
Reference | Frequency | Operating Voltage AC | Weight (kg)
I-CAT01 | 50-60 Hz | 1 - 500 kV | 0,150

Characteristics / technical specifications

• Model: I-CAT01
• Detection range: 1 to 500 kV AC, 50/60 Hz
• Detection method: omnidirectional electric field in air
• Built-in delay: approx. 1 s
• Alarm signals: visual and audible
• Connectivity: Bluetooth® (BLE 5.3) for LWAD functions
• Smartphone OS compatibility: Android and iOS (app via subscription)
• Lamp output: 130 lm (100%); modes 30%, 60%, 100%, Flash, OFF
• SOS: audible and visual Morse signals
• Battery type: replaceable 18650 Li-ion; runtime ~7 h (all functions)
• Charging: USB-C or external charger
• Ingress / mechanical protection: IP65 / IK07
• Standards: CE, CEM (directive 2014/30/UE)
• Weight: 0,150 kg
