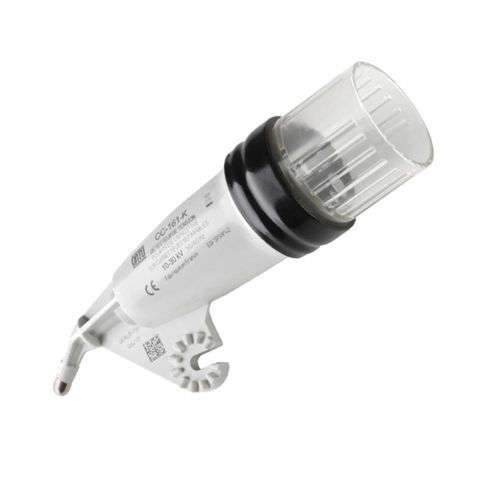

Voltage detector CC-161-K

AC voltagephasehigh-voltage

Summary
Unipolar voltage detector for separable connector capacitive terminals, suitable for 10 - 30 kV networks.

Application

• Unipolar voltage detector designed for plug-in terminals with capacitive voltage dividers.
• Maximum operating phase-to-phase voltage: 30 kV.

Features

• Voltage range: 10 - 30 kV.
• Detection threshold: 300 V.
• Contact tip: K.
• Contact electrode shape enables removal of the separable connector cap.
• Signalling:
  • 1 red LED (voltage presence).
  • 1 green LED (standby state).
  • Intermittent audible signal.
• Functional check via TEST button:
  • Red LEDs flash.
  • Intermittent audible signal is triggered.
• Mounting on insulating pole via serrated universal K-type tip.

Composition

• Supplied in a rigid carrying case.

Optional accessories

• Insulating pole: CC-45-K.
• Pole case: CM-1-10.

Standards
SPS EDF N°42

Table
Reference | Tip | Voltage range | Frequency | AC voltage | Weight (kg)
CC-161-K | K | 10 - 30 kV | 50 / 60 Hz | 10 - 30 kV | 0.43

Characteristics / technical specifications

• Operating voltage range: 10 - 30 kV.
• Detection threshold: 300 V.
• Tip: K (compatible with serrated universal K-type pole ends).
• Visual indication: red LED (voltage presence) and green LED (standby).
• Audible indication: intermittent audible signal.
• Functional check/test: TEST button (red LEDs flash and audible signal is triggered).
• Weight: 0.43 kg.
• Supplied in: rigid carrying case.
