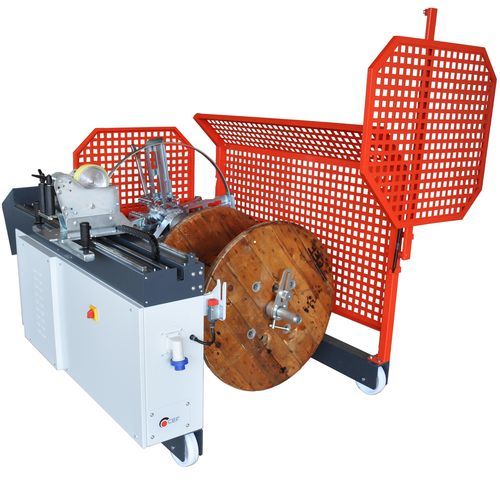

Cable coiler WIRE 1001Q7

for wiretubemanual

Description
Single machine for producing both hanks and reels. Versatile solution to handle a wide range of cables, ropes and tubes. Designed for operation by a single operator to perform daily cable warehousing measurements.

Technical data
Model: WIRE 1001Q7
Code: 0800.1001Q7
Dimensions mm: 2100 x 1515 x 2100
Weight Kg: 535

Reel
Reel shaft diameter mm: 50
Reels – max diameter mm: 1000
Reels – min width mm: 400
Reels – max width mm: 750
Reels – max load kg: 700
Hoisting: Manual

Drive
Speed RPM: 0/70
Voltage: 220 V
Power: 1.1 kW
Meter: Metal Medium code 0111
Laying: Manual
Cable min diameter mm: 3
Cable max diameter mm: 50

Control panel features

• Power supply 220 V – 50 Hz (380 V with automatic layering)
• Speed variation with inverter and potentiometer 0–70 rpm
• Gearmotor 1.1 kW
• Control panel with command buttons and indicator lights
• Double multifunction handle (hank and reel side) for layering, run button and RPM potentiometer

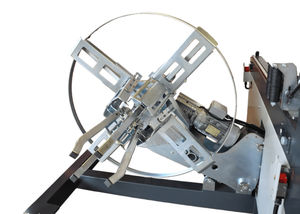

Hanker spindle
WIRE 1001Q7 – WIRE 1200Q9 – WIRE 1200Q13 (same hanker spindle)
Capacity Kg: 150
Wheel diameter mm: 960
Minimum core diameter mm: 325
Maximum core diameter mm: 500
Minimum core width mm: 120
Maximum core width mm: 245

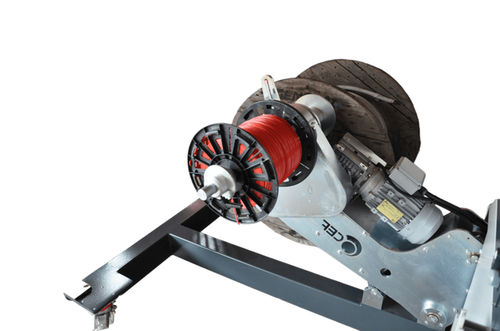

Quick hanker spindle features

• Hanker spindle integrated on the machine
• Retractable-lever spindle for quick hank removal
• Cylindrical core for winding and conical for extraction to ease hank removal
• Shaft with cones for small reels (removing the hanker allows use of a Ø 30 mm shaft for small reels with steel cones)

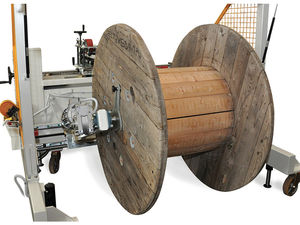

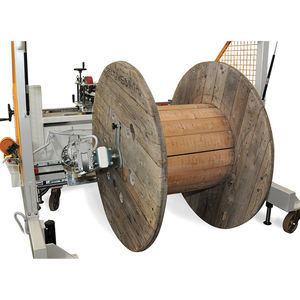

Winder features

• Steel shaft with cones
• Reel locking cone with quick tightening handle
• Reel loading by inserting the shaft into the reel bore by moving the machine
• Reel lifting by manual hydraulic pump
• Trolley with 4 wheels, 2 swivel with brake
• Guards compliant with CE standards

Measuring unit features

• Meter for round cables with diameters from 3 to 50 mm (error margin +1–2%)
• Rubber-coated metric wheel for better grip and measurement
• Mechanical counter with manual reset
• Manual cable layering via guides and slides
• Layering handle positioned for operator on machine sides, in compliance with safety rules
• On models WIRE 1200Q9 and WIRE 1200Q13 the Supermetal meter code 120 is integrated for diameters 3–60 mm

Small reel
Shaft mm: 30
Reels – max diameter mm: 600
Max width mm: 400
Max weight Kg: 150

Options
COD. 5314 – AUTOMATIC LAYERING TOUCH 4”: Automates cable layering, cut-to-length stop and functions via Siemens 4” touchscreen.
COD. 5312 – AUTOMATIC LAYERING TOUCH 7”: Automates cable layering, cut-to-length stop and functions via Siemens 7” touchscreen.
COD. 5317 – REMOTE ASSISTANCE KIT: Kit for program and electrical fault assistance.
COD. 6315 – MACHINE PARKING CYLINDERS: 2 cylinders for machine parking to the floor.
COD. 6311 – ELECTRO-HYDRAULIC UNIT FOR REEL LIFTING.
COD. 6311-S85 – ELECTRO-HYDRAULIC SHEAR: For cutting cables up to 60 mm diameter.
COD. 0158 – TOOLBOX AND TIE STRAP HOLDER KIT.
COD. 0159 – EXTENDABLE KIT.
COD. 0162 – PAIR OF CONES FOR SMALL REELS: To fit on Ø 30 mm shaft for spools up to Ø 600 mm.
COD. 0160 – SPREADER ADAPTERS FOR HANKER: 4 adapters to produce hanks with internal diameter Ø 500 mm.
COD. 5M13 – LINDE MACHINE TUGGER: For easier machine movement. Battery-powered to move other equipment as well.

Technical specifications

• Model: WIRE 1001Q7
• Code: 0800.1001Q7
• Dimensions (mm): 2100 x 1515 x 2100
• Weight (Kg): 535
• Voltage: 220 V (380 V optional with automatic layering)
• Motor power: 1.1 kW
• Speed: 0 – 70 RPM (with inverter)
• Reels: max diameter 1000 mm, width 400–750 mm, max load 700 kg
• Small reel: shaft Ø 30 mm, max reel diameter 600 mm, max width 400 mm, max weight 150 kg
• Hanker spindle: capacity 150 kg, wheel diameter 960 mm, core Ø 325–500 mm, core width 120–245 mm
• Meter: Metal Medium code 0111 (for diameters 3–50 mm; Supermetal code 120 for models 1200Q9/1200Q13 for diameters 3–60 mm)
• Handled cable: diameter 3–50 mm
• Reel lifting: manual (manual hydraulic for winder; optional electro-hydraulic unit)
