Cable winder RRM 1600Q20

manualelectric drivemotorized

Description

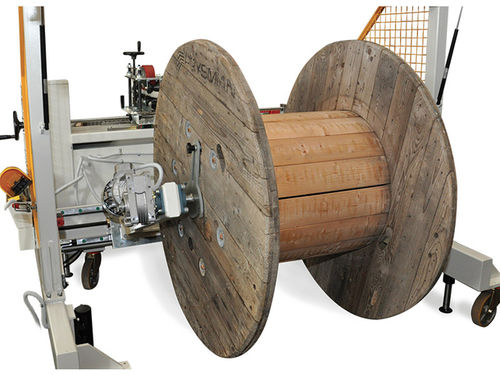

Industrial winding machine designed for handling and winding large cable reels. Compact footprint with robust frame ensures stable winding operations. Movable clamping arms and electro-hydraulic lift facilitate safe loading and unloading of heavy reels.

Technical data
Model: RRM 1600Q20
Code: 0900.1600Q20
Dimensions (mm): 2380x1640x2470
Weight (kg): 831

Reel
Clamping cone diameter (mm): 80
Maximum reel diameter (mm): 1600
Reel width min (mm): 500
Reel width max (mm): 1150
Maximum reel load (kg): 2000
Lift: Electro-hydraulic

Drive
Speed (rpm): 0–70
Voltage (V): 380
Power (kW): 2.2
Clamping: Electric
Layering: Manual
Measuring unit: Supermetal cod. 0120
Cable diameter min (mm): 3
Cable diameter max (mm): 60

Winder features

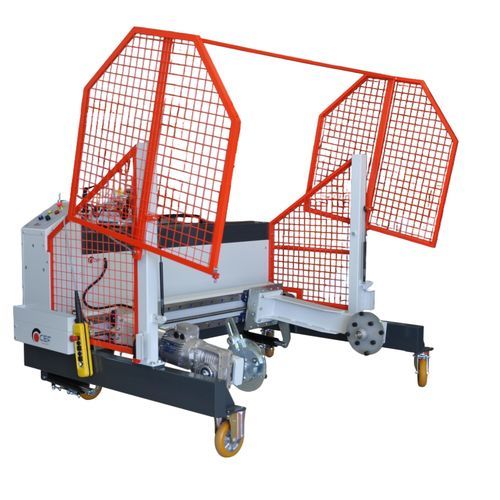

• Movable clamping arms with drive plates for reel traction, electrically operated from control pendant;
• Electro-hydraulic reel lift operated from control pendant;
• Safety guards compliant with CE standards;
• Trolley fitted with 4 wheels, 2 swivel with brake for machine movement.

Measuring unit features

• Measuring device for round cables, diameter 3–60 mm (accuracy margin approx. ±1–2%);
• Rubber-coated metric wheel for improved grip and measurement;
• Mechanical counter with manual reset;
• Manual layering by guides and skids;
• Layering handle positioned for operator on machine side in accordance with safety rules.

Electrical features

• Supply: 380 V – 50 Hz;
• Speed variation via inverter and potentiometer: 0–70 rpm;
• Gearmotor: 2.2 kW;
• Control panel with push buttons and indicator lights;
• Multifunction handle for layering with start button and RPM potentiometer.

Options

• COD. 5314 – AUTOMATIC TOUCH LAYERING 4”: Automates layering, length stop and additional functions via Siemens 4” touchscreen;
• COD. 5312 – AUTOMATIC TOUCH LAYERING 7”: Siemens 7” touchscreen version;
• COD. 5317 – REMOTE ASSISTANCE KIT: For program support and electrical fault assistance;
• COD. 6315 – MACHINE SUPPORT CYLINDERS: 2 cylinders for machine stabilization on ground;
• COD. 6311-S85 – ELECTRO-HYDRAULIC SHEAR: For cutting cables up to 60 mm diameter;
• COD. 0157 – POWER SUPPLY BRACKET: For top feed electrical supply;
• COD. 6285-1000 – QUICK WINDER SPOOL;
• COD. 6281 – SHAFT FOR SMALL REELS;
• COD. 5M13 – LINDE MACHINE TRAILER: Battery-operated for easy machine movement and other equipment handling.

Technical specifications

• Model: RRM 1600Q20
• Code: 0900.1600Q20
• Dimensions: 2380x1640x2470 mm
• Weight: 831 kg
• Clamping cone diameter: 80 mm
• Maximum reel diameter: 1600 mm
• Reel width min: 500 mm
• Reel width max: 1150 mm
• Maximum reel load: 2000 kg
• Lift: Electro-hydraulic
• Speed: 0–70 rpm
• Supply: 380 V – 50 Hz
• Motor power: 2.2 kW
• Clamping: Electric
• Layering: Manual
• Measuring unit: Supermetal cod. 0120
• Cable range: 3–60 mm
