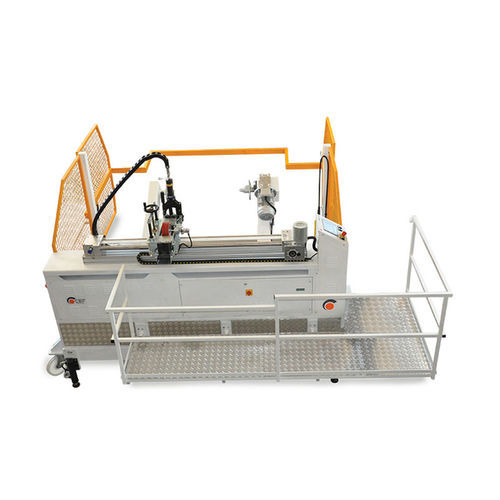

Cable winding machine RRM 2200Q40

motorizedelectric driveheavy-duty

Description
Heavy-duty winding machines designed for the winding and measuring of large-section cables. Reinforced construction and high-capacity movable clamping arms ensure maximum stability during heavy operations, supporting high productivity and operator safety.

Technical data
Model: RRM 2200Q40
Codes: 0900.2200Q40
Dimensions mm: 3350x2031x2178
Weight Kg: 1550

Reel
Cone clamping diameter mm: 80
Reels – maximum diameter mm: 2200
Reels – minimum width mm: 500
Reels – maximum width mm: 1450
Reels – maximum load kg: 4000
Lifting: Electro‑hydraulic

Drive
Speed: 0–56 rpm
Voltage: 380 V
Power: 3 kW
Clamping: Electric
Layering: Manual
Meter: Specialone cod. 0121
Cable Min. mm: 3
Cable Max. mm: 120

Winder features:

• Movable reel clamping arms with drive plates for reel traction, electrically operated from pendant control
• Reel lifting via electro‑hydraulic pump controlled from pendant control
• CE‑compliant guarding and protective covers
• Carriage fitted with 4 wheels, 2 of them steerable for mobility
• Four electro‑hydraulic cylinders to stabilize the machine to the ground

Meter features:

• Meter for round cables with diameter from 3 to 120 mm (accuracy margin +1–2%)
• Measuring wheel covered in rubber for improved grip and measurement accuracy
• Mechanical counter with manual reset
• Manual cable layering using guides and skids
• Layering handwheel operated from the machine side in accordance with safety standards

Electrical features:

• Power supply 380 V – 50 Hz
• Speed variation via inverter and potentiometer from 0 to 56 rpm
• 3 kW geared motor
• Control panel with push buttons and indicator lamps
• Digital counter for preselection of cable length and automatic stop

Technical specifications

• Model: RRM 2200Q40
• Code: 0900.2200Q40
• Dimensions: 3350 x 2031 x 2178 mm
• Weight: 1550 Kg
• Cone clamping diameter: 80 mm
• Reel max diameter: 2200 mm
• Reel width min/max: 500 / 1450 mm
• Max reel load: 4000 kg
• Lifting: electro‑hydraulic
• Speed: 0–56 rpm
• Power supply: 380 V – 50 Hz
• Motor power: 3 kW
• Clamping: electric
• Layering: manual (with guides and skids)
• Meter: Specialone cod. 0121 (for cables 3–120 mm, accuracy +1–2%)
• Cable diameter range: 3–120 mm
