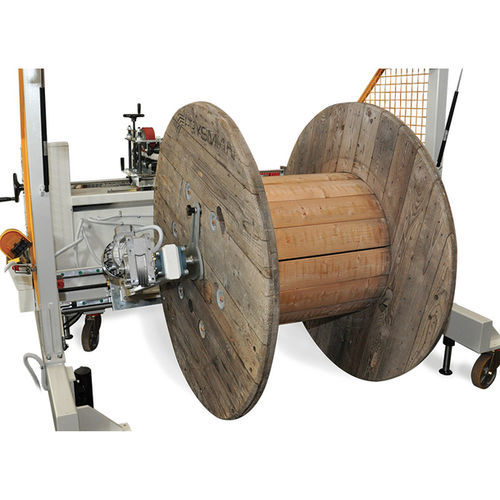

Cable winding machine RRM 1600Q30

manualwith meter countermobile

Description
Winding machines equipped with movable clamping lifting arms, designed to ensure efficient and safe handling of large cables and reels. The compact yet robust frame provides precise, stable winding while the movable clamping arms simplify loading and unloading operations.

Technical data
Model: RRM 1600Q30
Code: 0900.1600Q30
Dimensions mm: 2380 x 1640 x 2470
Weight kg: 840

Reel
Clamping cone diameter mm: 80
Maximum reel diameter mm: 1600
Reel width minimum mm: 500
Reel width maximum mm: 1150
Maximum load kg: 3000
Lifting: Electro-hydraulic

Drive
Speed: 0–70 rpm
Voltage: 380 V
Power: 3 kW
Clamping: Electric
Layering: Manual
Meter: Supermetal cod. 0120
Cable min mm: 3
Cable max mm: 60

Winding machine features

• Movable reel clamping arms with plates for reel traction, electrically controlled from the control panel;
• Reel lifting via electro-hydraulic pump controlled from the control panel;
• Guards in accordance with CE standards;
• Trolley fitted with 4 wheels, 2 of which are swivel with brake.

Meter features

• Meter for round cables with diameter from 3 to 60 mm (error margin +1–2%);
• Measuring wheel coated in rubber for better grip and measurement accuracy;
• Mechanical counter with manual reset;
• Manual cable layering using guides and sliders;
• Layering handle positioned on the operator side of the machine in compliance with safety regulations.

Electrical features

• Supply 380 V – 50 Hz;
• Speed variation with inverter and potentiometer from 0 to 70 rpm;
• Gearmotor 3 kW;
• Control panel with command buttons and indicator lights;
• Multifunction handle for layering with start button and RPM potentiometer.

Technical specifications

• Model: RRM 1600Q30
• Code: 0900.1600Q30
• Dimensions (mm): 2380 x 1640 x 2470
• Weight: 840 kg
• Clamping cone diameter: 80 mm
• Reels: max diameter 1600 mm; width min 500 mm, max 1150 mm; max load 3000 kg
• Lifting: electro-hydraulic
• Speed: 0 ÷ 70 rpm
• Supply: 380 V – 50 Hz
• Motor power: 3 kW
• Clamping: electric
• Meter: Supermetal cod. 0120 (for cables 3 ÷ 60 mm)
