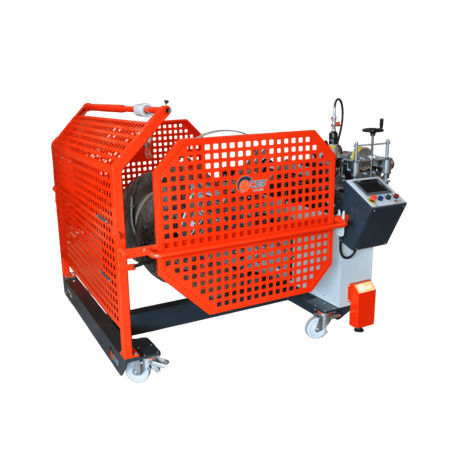

Wire coiler WIRE 1200Q13

cablecoilmanual

Description
One single machine for producing hanks and coils. Its versatility allows handling a wide range of cables, ropes and tubes. The machine enables a single operator to perform daily measurements and handling in a cable warehouse.

Technical sheet
Model: WIRE 1200Q13
Codes: 0800.1200Q13
Dimensions mm: 2100x1515x2100
Weight Kg: 560

Coil
Winding mandrel diameter mm: 76
Coils – maximum diameter mm: 1250
Coils – minimum width mm: 400
Coils – maximum width mm: 750
Coils – maximum capacity kg: 1300
Lifting: Manual

Drive
Speed RPM: 0/70
Voltage: 220
Power: 1.1 kW
Measuring unit: Supermetal cod. 0120
Layering: Manual
Cable minimum diameter mm: 3
Cable maximum diameter mm: 60

Control panel features

• Power supply 220 V – 50 Hz (380V with automatic layering)
• Speed variation via inverter and potentiometer from 0 to 70 RPM
• Gearmotor 1.1 kW
• Control panel with push buttons and status indicators
• Dual multifunction handles (hank side and coil side) for layering, start button and RPM potentiometer

Hanker reel
Compatible models: WIRE 1001Q7 – WIRE 1200Q9 – WIRE 1200Q13 (same hanker reel)
Capacity Kg: 150
Wheel diameter mm: 960
Core minimum diameter mm: 325
Core maximum diameter mm: 500
Core minimum width mm: 120
Core maximum width mm: 245

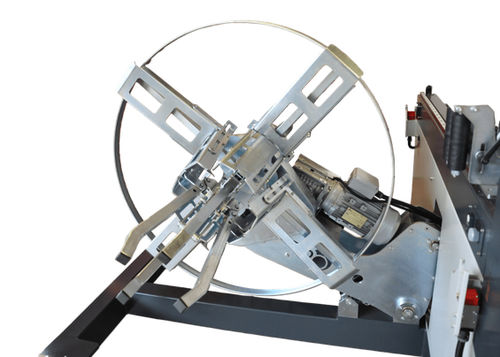

Rapid hanker reel features

• Hanker reel already integrated on the machine
• Retractable-lever reel for quick removal of the hank
• Cylindrical winding core and conical extraction core to ease hank removal
• Shaft with cones for small-size coils (shaft diameter 30 mm for small coils with steel cones)

Winder features

• Steel shaft with cones
• Coil locking cone with handle for quick tightening
• Coil loading by inserting the shaft into the coil hole while moving the machine
• Coil lifting with manual hydraulic pump
• Trolley equipped with 4 wheels, 2 swivel with brake
• Protection guards compliant with CE standards

Measuring unit features

• Measuring unit for round cables with diameter from 3 to 60 mm (error margin +1–2 %)
• Metric wheel covered in rubber for better grip and measurement accuracy
• Mechanical counter with manual reset
• Manual cable layering using guides and sliders
• Layering handle positioned for operator at machine sides, according to safety regulations
• On models WIRE 1200Q9 and WIRE 1200Q13 the Supermetal measuring unit cod. 120 is integrated for diameters 3 to 60 mm

Small coil
Shaft mm: 30
Coils – maximum diameter mm: 600
Maximum width mm: 400
Maximum weight Kg: 150

Optional
COD. 5314 – AUTOMATIC LAYERING TOUCH 4”: automates cable layering, stop at length and additional functions via Siemens 4” touchscreen
COD. 5312 – AUTOMATIC LAYERING TOUCH 7”: automates cable layering, stop at length and additional functions via Siemens 7” touchscreen
COD. 5317 – REMOTE ASSISTANCE KIT: kit for assistance to program functions and electrical faults
COD. 6315 – CYLINDERS FOR MACHINE STABILIZATION: n.2 cylinders for anchoring the machine to the floor
COD. 6311 – ELECTRO-HYDRAULIC UNIT FOR COIL LIFTING
COD. 6311-S85 – ELECTRO-HYDRAULIC SHEAR: for cutting cables up to 60 mm diameter
COD. 0158 – TOOLBOX AND CABLE-TIE HOLDER KIT
COD. 0159 – EXTENDABLE KIT
COD. 0162 – PAIR OF CONES FOR SMALL COILS (for shaft Ø 30 mm, coils up to Ø 600 mm)
COD. 0160 – REAR EXTENDERS FOR REEL: n.4 extenders to obtain internal diameter Ø 500 mm hanks
COD. 5M13 – LINDE MACHINE TOWING DEVICE: battery powered, to facilitate machine movement

Technical characteristics / specifications

• Model: WIRE 1200Q13
• Codes: 0800.1200Q13
• Dimensions mm: 2100x1515x2100
• Weight: 560 Kg
• Standard voltage: 220 V (50 Hz) - 380V possible with automatic layering
• Gearmotor power: 1.1 kW
• Speed: 0–70 RPM (variation via inverter and potentiometer)
• Winding mandrel diameter: 76 mm
• Coils max Ø: 1250 mm; width 400–750 mm; max capacity 1300 Kg
• Integrated measuring unit: Supermetal (cod. 0120 / cod. 120) for diameters 3–60 mm
• Processable cable: diameter 3–60 mm
• Coil lifting: manual (electro-hydraulic unit optional)
• Trolley with wheels (2 swivel with brake)
• Safety: guards compliant with CE standards
