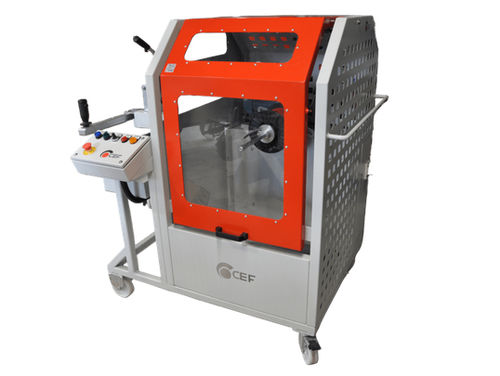

Electric cable rewinder-winder 0419

spoolcablehank

Description
Electric winder suitable for winding small-size reels. The unwinding shaft allows cable to be taken from reels. Its speed significantly reduces production times.

Technical data
Model: 0419
Dimensions mm: 1400X1400X1030
Weight Kg: 150

Winder features

• Steel shaft with centering cones for reels
• Trolley with 4 wheels, 2 swivel with brake
• Guards compliant with CE standards

Winder technical data
Shaft mm: 20
Reels – Maximum diameter mm: 600
Reels – Minimum diameter mm: 100
Reels – Maximum width mm: 350
Reels – Maximum load kg: 70

Electrical and mechanical technical data
Speed RPM: 0/70
Voltage V: 220
Power kW: 0.37
Counter: COD. 0110
Layering: Manual
Cable – Minimum diameter mm: 2
Cable – Maximum diameter mm: 30

Electrical features

• Power supply 220 V – 50 Hz
• Speed variation with inverter and potentiometer from 0 to 70 RPM
• Gearmotor 0.37 kW
• Control panel with command buttons and indicator lights
• Multifunction handle for layering with start button and RPM potentiometer

Unwinder shaft support features

• Two extractable arms to support the reel to be unwound with Delrin bushings
• Integrated shaft with aluminium cones for reels

Counter features

• Counter for round cables with diameter from 2 to 30 mm (error margin ±1–2%)
• Measuring wheel covered in rubber for better grip and improved measurement
• Mechanical counter with manual reset
• Manual cable layering via guides and HIWIN slides for smoother movement and greater durability

Accessories / Options listed on the page
CODE 6260.0600: Removable wheel spool for making cable hanks

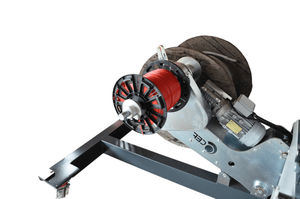

CODE 0419.001: Integrated rear support with shaft complete with centering cones to unwind cable reels. Max reel diameter 600 mm, Capacity 100 Kg.

Characteristics / technical specifications

• Model: 0419
• Name: DOUBLE
• Dimensions (mm): 1400 x 1400 x 1030
• Weight: 150 Kg
• Main shaft: 20 mm
• Reel diameter: min 100 mm – max 600 mm
• Reel width: max 350 mm
• Reel capacity: max 70 Kg (optional rear support 100 Kg)
• Speed: 0–70 RPM (inverter)
• Power supply: 220 V – 50 Hz
• Motor power: 0.37 kW
• Cable measurement range: diameter 2–30 mm
