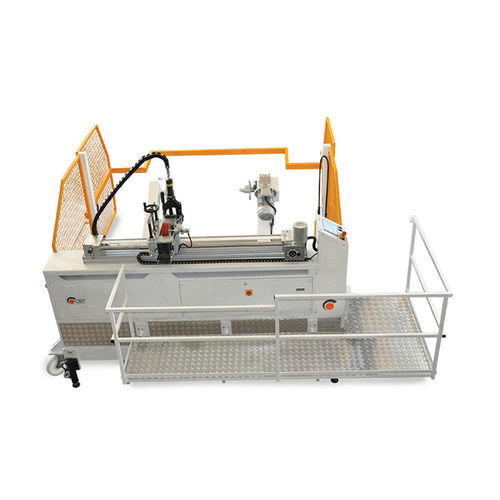

Cable winding machine RRM 2600Q60

manualelectric drivewith meter counter

Description
High-power winding machine with a reinforced frame, designed for winding and measuring large-section cables. Mobile clamping arms and robust construction ensure stability during heavy-duty operations, providing consistent winding performance and safe handling.

Technical data
Model: RRM 2600Q60
Codes: 0900.2600Q60
Dimensions (mm): 4391 x 2711 x 3911
Weight (kg): 1965

Bobbin
Clamping cone diameter (mm): 80
Max bobbin diameter (mm): 2600
Min bobbin width (mm): 500
Max bobbin width (mm): 1450
Max bobbin load (kg): 6000
Lift: Electro-hydraulic

Drive
Speed (rpm): 0–56
Voltage (V): 380
Power: 3
Clamping: Electric
Layering: Manual
Counter: Specialone cod. 0121
Min cable diameter (mm): 3
Max cable diameter (mm): 120

Winder features

• Mobile clamping arms for bobbins with drive plates for bobbin traction, electrically operated from a push-button panel;
• Bobbin lifting by electro-hydraulic pump controlled from push-button panel;
• Safety guards compliant with CE standards;
• Trolley equipped with 4 wheels, 2 of which are steerable;
• Four electro-hydraulic cylinders to stabilize the machine to the ground.

Meter features

• Measuring device for round cables with diameter from 3 to 120 mm (error margin ±1–2%);
• Measuring wheel covered in rubber for improved traction and measurement accuracy;
• Mechanical length counter with manual reset;
• Manual cable layering using guides and sliders;
• Layering handwheel located on the operator side of the machine in compliance with safety regulations.

Electrical features

• Power supply: 380 V – 50 Hz;
• Speed variation via inverter and potentiometer from 0 to 56 rpm;
• Gearmotor: 4 kW;
• Control panel with command buttons and indicator lights;
• Digital counter for preset cable length and automatic stop.

Technical specifications

• Model: RRM 2600Q60
• Codes: 0900.2600Q60
• Dimensions (mm): 4391 x 2711 x 3911
• Weight: 1965 kg
• Max bobbin diameter: 2600 mm
• Bobbin width: 500 – 1450 mm
• Max bobbin load: 6000 kg
• Lift: Electro-hydraulic
• Speed: 0 – 56 rpm
• Power supply: 380 V – 50 Hz
• Motor power: 3
• Counter: Specialone cod. 0121 (3–120 mm)
