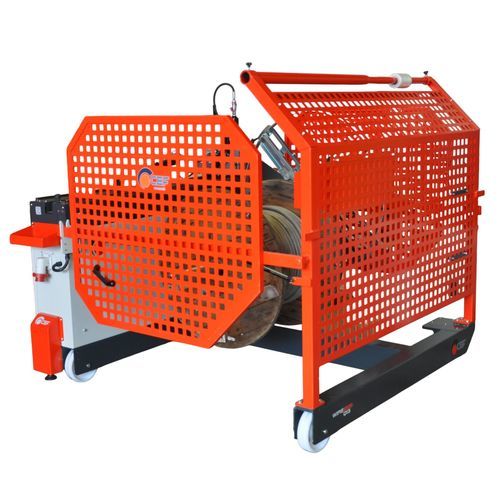

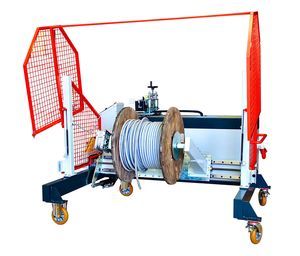

Cable winding machine WIRE 1200Q9

tubewireelectric drive

Description
One machine for both hank coiling and reel winding. Its versatility covers a wide range of cables, ropes and tubes. Designed so a single operator can handle daily measurements and handling in a cable warehouse.

Technical Data
Model: WIRE 1200Q9
Code: 0800.1200Q9
Dimensions mm: 2100 x 1515 x 2100
Weight Kg: 550

Reel
Winder shaft diameter mm: 60
Reel — max diameter mm: 1250
Reel — min width mm: 400
Reel — max width mm: 750
Reel — max capacity kg: 900
Lift: Manual

Drive
Speed RPM: 0/70
Voltage: 220 V
Power: 1.1 kW
Measuring unit: Supermetal cod. 0120
Layering: Manual
Cable min diameter mm: 3
Cable max diameter mm: 60

Control panel features

• Power supply 220 V – 50 Hz (380 V with automatic layering)
• Speed variation with inverter and potentiometer from 0 to 70 rpm
• Gearmotor 1.1 kW
• Control panel with push buttons and indicator lights
• Dual multifunction handle (hank side and reel side) for layering, start button and RPM potentiometer

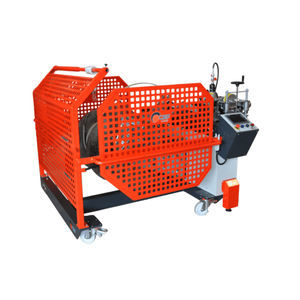

Hank winder spindle
WIRE 1001Q7 – WIRE 1200Q9 – WIRE 1200Q13 (same hank spindle)
Capacity Kg: 150
Wheel diameter mm: 960
Core min diameter mm: 325
Core max diameter mm: 500
Core min width mm: 120
Core max width mm: 245

Rapid hank spindle features

• Hank spindle integrated on the machine
• Retractable-lever spindle for quick hank removal
• Cylindrical winding core and conical extraction core to ease hank removal
• Shaft with cones for small reels (using 30 mm shaft with steel cones)

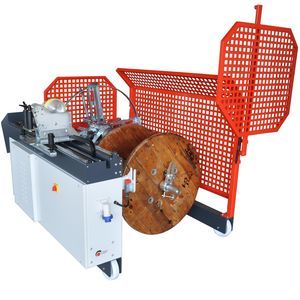

Winder features

• Steel shaft with cones
• Reel locking cone with quick-action handle
• Reel loading by inserting shaft into reel hole after moving the machine
• Reel lifting with manual hydraulic pump
• Trolley with 4 wheels, 2 swivel with brake
• Safety guards compliant with CE standards

Measuring unit features

• Measuring unit for round cables with diameter from 3 to 50 mm (error margin ±1–2%)
• Metric wheel covered with rubber for better grip and measurement accuracy
• Mechanical counter with manual reset
• Manual cable layering using guides and sliders
• Layering handle positioned for operator on machine side, compliant with safety regulations
• On WIRE 1200Q9 and WIRE 1200Q13 models the Supermetal measuring unit cod. 120 is integrated for diameters from 3 to 60 mm

Small reel
Shaft mm: 30
Reel — max diameter mm: 600
Max width mm: 400
Max weight Kg: 150

Optional

• COD. 5314 – AUTOMATIC LAYERING TOUCH 4”: automates cable layering, length stop and functions via Siemens 4” touch screen
• COD. 5312 – AUTOMATIC LAYERING TOUCH 7”: same functions with Siemens 7” touch screen
• COD. 5317 – REMOTE ASSISTANCE KIT: support kit for program functions and electrical error assistance
• COD. 6315 – CYLINDERS FOR MACHINE RESTING: 2 cylinders for machine support on floor
• COD. 6311 – ELECTRO-HYDRAULIC UNIT FOR REEL LIFT
• COD. 6311-S85 – ELECTRO-HYDRAULIC SHEAR: for cutting cables up to 60 mm diameter
• COD. 0158 – TOOLBOX AND TIE HOLDER KIT
• COD. 0159 – EXTENDABLE KIT
• COD. 0162 – PAIR OF CONES FOR SMALL REELS: for 30 mm shaft up to Ø 600 mm
• COD. 0160 – REEL EXPANDERS: 4 expanders for hanks with internal diameter Ø 500 mm
• COD. 5M13 – LINDE MACHINE TOWING DEVICE: battery-powered aid for moving the machine

Technical characteristics / specifications

• Model: WIRE 1200Q9
• Code: 0800.1200Q9
• Dimensions: 2100 x 1515 x 2100 mm
• Weight: 550 kg
• Reel capacity: up to 900 kg (max diameter 1250 mm)
• Speed: 0–70 RPM (inverter + potentiometer)
• Standard power supply: 220 V – 50 Hz (380 V option for automatic layering)
• Motor power: 1.1 kW
• Integrated measuring unit: Supermetal (cod. 0120 / 120 for extended versions), measures cables from 3 to 60 mm
• Reel lift: manual (manual hydraulic pump for reel)
