Oil pump PMB

with electric motorcentrifugalstationary

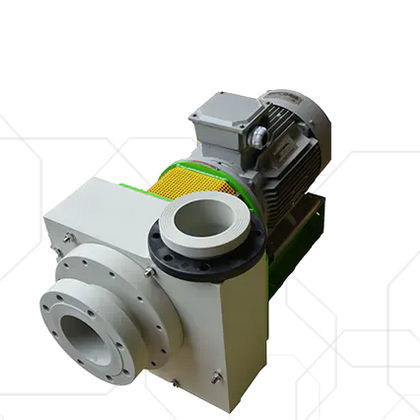

Anti-corrosion close-coupled centrifugal pumps PMB / PMC Construction Single-stage, close-coupled horizontal centrifugal PMC pumps. Direct coupling to the motor by rigid sleeve. With a particularly robust and economical design, our PMC type monobloc centrifugal pumps with mechanical seal ensure the transfer of corrosive liquids with a flow rate of up to 300 m3/h and a delivery head of 60 meters. All parts in contact with corrosive liquids are made of particularly corrosion-resistant materials: PPH, PEHD or PVDF. Options Intermittent or continuous flushing Dry running detector ATEX construction according to 94/9/EC Threaded, Barbed, Union Connections Shaft sealing Single reverse mechanical seal SiC-SiC or SiC-Carbon (spring out of fluid) Reverse single mechanical seal Options Intermittent or continuous flushing. Dry running detector ATEX construction according to 94/9/CE Threaded, Barbed, Union Connections Benefits Economical direct-coupled construction Insensitive to the direction of motor rotation No wheel nose
