Oil pump PVwith electric motorself-primingcentrifugal
Add to favorites
Compare this product
Characteristics
- Fluid
- oil
- Operation
- with electric motor
- Priming
- self-priming
- Technology
- centrifugal
- Mobility
- stationary
- Domain
- industrial
- Applications
- transfer, discharge
- Material
- HDPE, PVDF
- Protection level
- anti-corrosion
- Other characteristics
- single-stage, flow, corrosion-resistant, vertical
- Flow
400 m³/h
(14,125.86669 ft³/h)- Head
60 m
(196'10" )- Power
132 kW
(179.47 hp)- Fluid temperature
Max.: 140 °C
(284 °F)Min.: -40 °C
(-40 °F)
Description

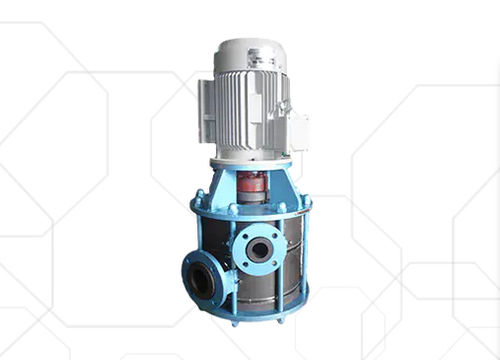

Anti-corrosion vertical glandless pumps type PV
Construction
Single-stage vertical centrifugal PV pumps.
Monoblock or with bearing depending on the size.
Dynamic sealing by discharge turbine.
Semi-open type impeller.
Our vertical centrifugal pumps transfer corrosive liquids with a flow rate of up to 400 m3/h and a delivery head of 60 meters.
All parts in contact with corrosive liquids are made of particularly corrosion-resistant materials: impregnated graphite, PPH, HDPE, PVDF.
Uses
Vertical construction, reduced footprint
Temperatures up to 150°C depending on materials.
