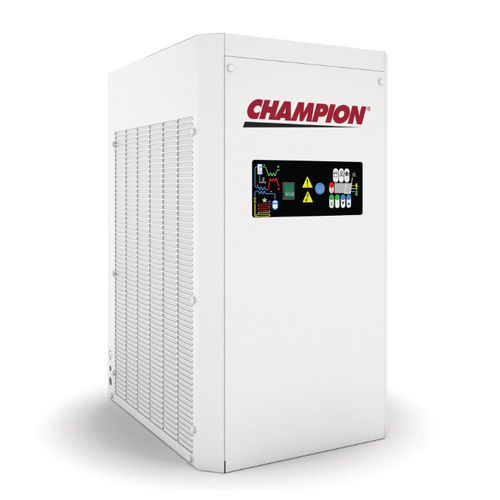

Refrigerated compressed air dryer CRH series

triple-levelcompacthigh-temperature

High Inlet Temp Refrigerated Air Dryers The CRH Series High Inlet Temperature refrigerated dryers feature a unique design which works directly with reciprocating air compressors. A unique heat exchanger allows the dryer to accept elevated inlet air temperatures up to 180°F (82°C). This allows compressed air users to send high temperature air straight from their compressor directly to the CRH Series refrigerated dryer and maintain a 50°F pressure dew point. The CRH Series is ideally suited for auto body shops, auto service centers, and light industrial facilities with 5 to 30 horsepower reciprocating air compressors. Features 20 - 125 SCFM Maximum inlet temperature: 180°F Maximum working pressure: 250 PSIG Automatic Zero-Loss Drain Benefits Compact - saves valuable floor space No interconnecting piping Free standing cabinet Power cord and plug Staggered inlet /outlet connections Inlet strainer included
