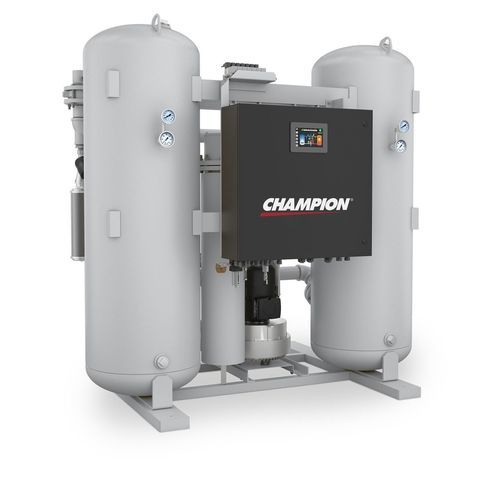

Desiccant compressed air dryer XCHB

blower purgecompact

Overview
These XCHB Series blower desiccant air dryers feature an extremely low silhouette with manifolds, valves and service ports positioned within easy reach of the operator. Each model integrates durable components and advanced controls to simplify installation, operation and maintenance while providing reliable desiccant drying performance.

Features

• 150 - 3000 SCFM
• Maximum working pressure: 150 PSIG standard (higher pressures available)
• Low-profile design for operator access
• Low-mounted packaged filtration for ease of service
• NEMA 4 enclosure – standard
• 7" color touchscreen controller
• Tower pressure gauges
• Packaged pre-filter and after-filter – standard

Benefits

• Engineered for energy efficiency, reliability and safety in industrial compressed-air systems
• Low pressure drop through optimized valve selection, tower sizing and filter design
• Optional Energy Management System (EMS) reduces purge consumption while maintaining a constant dew point and extending dryer cycles to lower energy costs
• Large sound-attenuating purge mufflers with built-in relief valves enhance safety and reduce noise
• Low-profile layout places valves at operator level and provides direct access to fill and drain ports for safer, easier maintenance
• Pre-filter and after-filter protect desiccant and downstream equipment from oil and particulates
• Easy-to-replace stainless-steel desiccant screens prevent contamination and simplify cleaning
• High-efficiency heater and/or blower controlled by outlet regeneration temperature; shuts off when regeneration is complete to save electrical power (EMS available on heated dryers)

Technical specifications

• Product type: Blower desiccant air dryer
• Capacity range: 150 - 3000 SCFM
• Maximum working pressure: 150 PSIG standard (higher pressures available)
• Design: Low-profile
• Controller: 7" color touchscreen
• Enclosure rating: NEMA 4 (standard)
• Filtration: Packaged pre-filter and after-filter standard; low-mounted filtration for ease of service
• Instrumentation: Tower pressure gauges
• Desiccant maintenance: Stainless-steel desiccant screens, easy to replace
• Energy options: Optional Energy Management System (EMS); high-efficiency heater/blower with outlet regeneration temperature control
