Refrigerated compressed air dryer XCNC
largehigh-quality

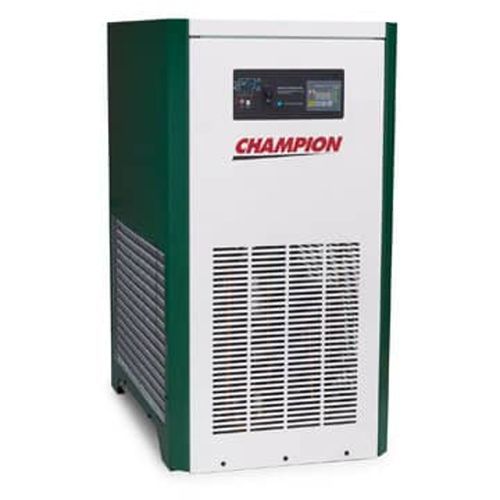

Refrigerated compressed air dryer - XCNC - Champion Pneumatic - large / high-quality

Add to favorites

Compare this product

Characteristics

Technology

refrigerated

Other characteristics

high-quality, large

Capacity

Max.: 2,038.81 m³/h
(71,999.9 ft³/h)

Min.: 11.89 m³/h
(419.89 ft³/h)

Working pressure

Max.: 2.07 MPa

Min.: 1.4 MPa

Operating temperature

Max.: 60 °C
(140 °F)

Min.: 49 °C
(120.2 °F)

Ambient temperature

Max.: 38 °C
(100.4 °F)

Min.: 38 °C
(100.4 °F)

Description

Product Overview
Our dryers offer multiple design features to ensure a constant dew point at all load levels and deliver continuous dry-air performance that satisfies ISO 7183 and CAGI ADF100. The dryer's full-function control with enhanced parameters, diagnostics and alarms is more sophisticated than similarly sized competitive products. Each unit is factory-tested to verify leak-free operation and compliance with specifications.

Features

7-1200 SCFM
NEMA 1 Standard
Maximum Inlet Air Temperature:
- XCNC7-150: 140°F (60°C)
- XCNC200-1200: 120°F (49°C)
Maximum Operating Pressure:
- XCNC200-1200: 300 psig
- XCNC7-100: 203 psig
Rated Flow Capacity: Conditions for rating dryers are in accordance with ISO 7183
Rating conditions: Compressed air at dryer inlet = 100 psig (7 bar) and 100°F (38°C); ambient air temperature = 100°F (38°C)
Pressure drift: +/- 0.5 psig (Models XCNC200-1200)

Benefits

Quiet compressor: Fully hermetic compressor for quiet, reliable operation.
Superior heat exchanger: 100% corrosion-resistant heat exchanger for excellent heat transfer and low pressure drop.
High-efficiency separator: Removes moisture effectively across full and partial load conditions.
Clog-resistant condensate drain: Adjustable electric condensate drain with large port to resist clogging.
Durable enclosure: Full cabinet of heavy-gauge steel with powder-coat finish.
Large condensers: Generously sized condensers positioned to minimize dust and debris accumulation.

Caractéristiques / Spécifications techniques

Flow range: 7-1200 SCFM
NEMA rating: NEMA 1 (standard)
Maximum inlet air temperature: XCNC7-150 = 140°F (60°C); XCNC200-1200 = 120°F (49°C)
Maximum operating pressure: XCNC200-1200 = 300 psig; XCNC7-100 = 203 psig
Rated flow capacity: Conditions per ISO 7183
Rating conditions: Compressed air at dryer inlet = 100 psig (7 bar) and 100°F (38°C); ambient air temperature = 100°F (38°C)
Pressure drift: +/- 0.5 psig (Models XCNC200-1200)
