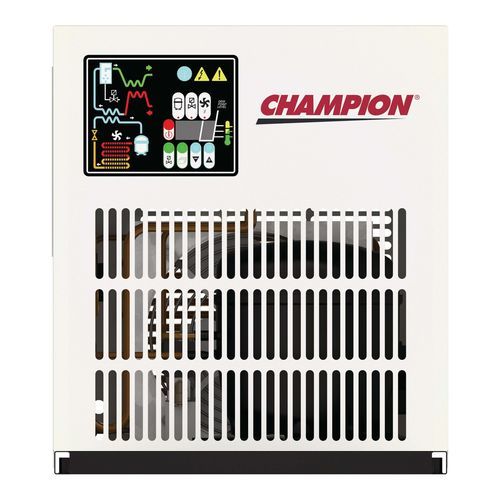

Refrigerated compressed air dryer CGD

compact

Product Overview
The CGD Series refrigerated air dryers deliver ISO 8573-1 air quality with a pressure dew point typically in Class 4 to 5. They use the low-GWP refrigerant R513A and incorporate brazed aluminum heat exchangers and low pressure-drop designs for energy-efficient compressed air drying. Available capacities range from 7 to 50 SCFM. Units are certified to UL and CSA safety standards and ETL certified to UL60335-1 & 60335-2-40.

Features

• Utilizes R513A refrigerant with reduced Global Warming Potential (GWP).
• Constant pressure valve for stable operation across varying loads.
• Brazed aluminum heat exchanger for compact, corrosion-resistant performance.
• Low pressure drop design to minimize energy consumption.
• Simplified construction for straightforward maintenance.
• Certified: ETL to UL60335-1 & 60335-2-40; meets UL and CSA safety standards.

Benefits

• Helps meet sustainability and environmental regulations by using a low-GWP refrigerant.
• Stable pressure control reduces process variability and supports consistent downstream equipment performance.
• Durable brazed aluminum heat exchanger extends service life and improves thermal efficiency.
• Range of models (7–50 SCFM) suits small to medium industrial compressed air systems.
• Compact, service-friendly design lowers downtime and maintenance effort.

Performance (table)
Model | Inlet Flow SCFM* | Pressure Drop PSID | Voltages | IN/OUT Air Connect SIZE | Power Consumption kW | Refrigerant | W (IN.) | D (IN.) | H (IN.) | Ship Weight LBS.
CGDA7A1 | 7 | 3.5 | 115/1/60 | 3/8" MNPT | 0.15 | R513A | 12.6 | 12.6 | 15.3 | 45
CGDA11A1 | 11 | 6 | 115/1/60 | 3/8" MNPT | 0.16 | R513A | 12.6 | 12.6 | 15.3 | 45
CGDA15A1 | 15 | 8.5 | 115/1/60 | 3/8" MNPT | 0.16 | R513A | 12.6 | 12.6 | 15.3 | 45
CGDA25A1 | 25 | 0.5 | 115/1/60 | 1/2" FNPT | 0.27 | R513A | 15.4 | 16.9 | 17.5 | 58
CGDA32A1 | 32 | 0.6 | 115/1/60 | 1/2" FNPT | 0.27 | R513A | 15.4 | 16.9 | 17.5 | 58
CGDA42A1 | 42 | 1 | 115/1/60 | 1/2" FNPT | 0.51 | R513A | 15.4 | 16.9 | 17.5 | 69
CGDA50A1 | 50 | 1.3 | 115/1/60 | 1/2" FNPT | 0.52 | R513A | 15.4 | 16.9 | 17.5 | 69

Specifications

• Brand: Champion Pneumatic
• Denomination / Series: CGD Series
• Refrigerant: R513A (low GWP)
• Air quality: ISO 8573-1, Class 4 to 5 pressure dew point
• Capacity range: models from 7 to 50 SCFM
• Heat exchanger: Brazed aluminum heat exchanger
• Design: Low pressure drop for energy efficiency; streamlined construction for simplified maintenance
• Valve: Constant pressure valve for stable operation
• Certifications: ETL Certified to UL60335-1 & 60335-2-40; certified to UL and CSA safety standards
• Typical inlet connections: 3/8" MNPT or 1/2" FNPT depending on model
• Typical voltages: 115/1/60 (per model table)
