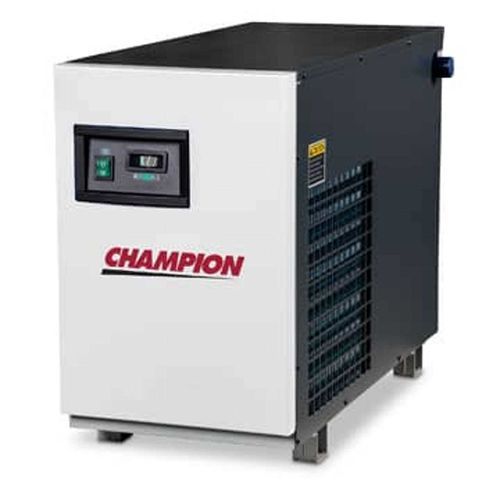

Refrigerated compressed air dryer CGD

compact

Introduction
CGD Series refrigerated air dryers 10 - 1200 SCFM. Designed to dry compressed air systems to a stable ISO 8573-1 air quality, Class 4 to 5 pressure dew point. Smooth-bore, copper tube-on-tube heat exchangers and efficient condensate management ensure consistent performance across the series.

Features
CGD 15-50 SCFM

• Smooth bore, copper tube-on-tube heat exchangers
• Centrifugal separator efficiently captures condensate
• Static condenser design provides quiet, trouble-free operation
• Electronic drain valve

CGD 75-1200 SCFM

• Stainless steel cross-flow heat exchangers for optimized heat transfer and long service life
• Compact footprint to save floor space
• Stainless steel inlet/outlet connections to prevent corrosion
• Timed electric condensate drain
• Integral demister/separator

Benefits

• Value at its best
• Efficient condensate management
• Expanded calming/decantation zone and integral demister/separator capture liquid condensate and solid particles
• Effectively removes condensate across 0–100% flow without moisture carry-over
• Equipped with condensate drain (electronic or timed electric depending on SCFM range)

Technical specifications

• Capacity range: 10 - 1200 SCFM (series)
• Pressure dew point: designed to achieve ISO 8573-1 air quality, Class 4 to 5 pressure dew point
• Heat exchanger options: smooth bore copper tube-on-tube (certain SKUs) and stainless steel cross-flow (75-1200 SCFM)
• Condensate management: centrifugal separator and integral demister/separator; electronic or timed electric condensate drains depending on SCFM range
• Condenser design: static condenser for quiet, trouble-free operation (on applicable models)
• Materials: stainless steel inlet/outlet connections on larger models to prevent corrosion
• Design: compact footprint to save floor space (on applicable models)
• Applications: refrigerated drying of compressed air systems to stable pressure dew points per listed air quality classes
