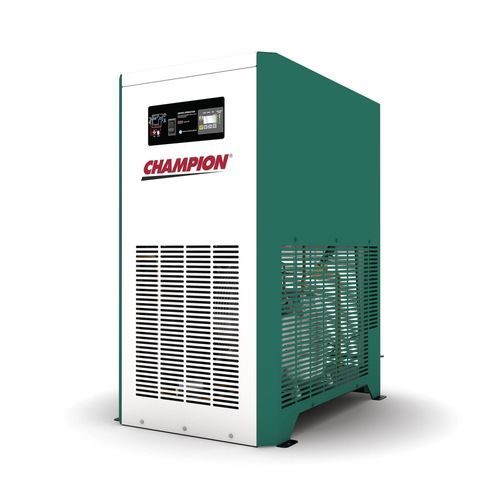

Refrigerated compressed air dryer XCNCA

Overview
Our XCNCA Series refrigerated compressed air dryers deliver consistent dry-air performance and a stable dew point across varying load levels. Designed for industrial applications, units use low-GWP R513A refrigerant, feature corrosion-resistant heat exchangers and high-efficiency moisture separation, and include advanced microprocessor controls for straightforward system management. Each unit ships with pre- and post-filtration and is factory-tested to ensure leak-free operation and compliance with safety standards.

Features

• Capacity range: 75–800 SCFM (models XCNCA75 through XCNCA800)
• R513A refrigerant with low Global Warming Potential (GWP)
• Corrosion-resistant heat exchangers; patented 5-in-1 design for 300–800 SCFM models
• High-efficiency moisture separation with Class 4 PDP
• Advanced microprocessor control system for monitoring and alarms
• Variable-speed fans for optimized energy use and stable dew point
• Pre- and post-filtration supplied (general-purpose and high-efficiency)
• Third-party certifications: UL 60335-1, UL 60335-2-40, CSA 22.2 #60335-1, CSA 22.2 #60335-2-40
• Extensive testing under rated, high-load, and low-load conditions

Benefits
Use of R513A supports sustainability objectives by reducing GWP compared with older refrigerants. Low pressure-drop design improves energy efficiency and reduces operating costs. Durable heat exchangers and rigorous testing minimize downtime and support reliable operation in industrial systems.

Performance (summary table)
MODEL | Inlet Flow (SCFM) | Pressure Drop (PSID) | VOLTAGES | IN/OUT AIR CONNECT SIZE | Power (KW) | Refrigerant | W IN. | D IN. | H IN. | SHIP WT (LBS)
XCNCA75 | 75 | 2.94 | 115/1/60 | 3/4" FPT | 0.66 | R513A | 15.2 | 19.7 | 24.3 | 94
XCNCA100 | 100 | 3.5 | 115/1/60 | 3/4" FPT | 0.85 | R513A | 15.2 | 19.7 | 24.3 | 99
XCNCA150 | 150 | 3.2 | 115/1/60 | 1 1/2" FPT | 0.88 | R513A | 19.7 | 30.3 | 37.5 | 154
XCNCA200 | 200 | 4.4 | 115/1/60 | 1 1/2" FPT | 1.12 | R513A | 19.7 | 30.3 | 37.5 | 170
XCNCA250 | 250 | 5.71 | 115/1/60 | 1 1/2" FPT | 1.52 | R513A | 20.9 | 31.8 | 49.3 | 440
XCNCA300 | 300 | 2.5 | 460/3/60 | 2" | 2.00 | R513A | 34.0 | 49.2 | 55.6 | 583
XCNCA400 | 400 | 3.0 | 460/3/60 | 2" | 2.10 | R513A | 34.0 | 49.2 | 55.6 | 603
XCNCA500 | 500 | 1.5 | 460/3/60 | 3" | 2.40 | R513A | 41.4 | 57.5 | 59.8 | 1049
XCNCA600 | 600 | 1.7 | 460/3/60 | 3" | 2.70 | R513A | 41.4 | 57.5 | 59.8 | 1074
XCNCA700 | 700 | 2.2 | 460/3/60 | 3" | 3.20 | R513A | 41.4 | 57.5 | 59.8 | 1099
XCNCA800 | 800 | 2.6 | 460/3/60 | 4" | 4.00 | R513A | 41.4 | 57.5 | 59.8 | 1124

Downloads
Brochure available (English).

Technical specifications

• Capacity: 75–800 SCFM
• Refrigerant: R513A (low GWP)
• Heat exchanger: corrosion-resistant; patented 5-in-1 design for 300–800 SCFM models
• Moisture separation: high-efficiency separation with Class 4 PDP
• Controls: advanced microprocessor control system
• Energy: variable-speed fans for optimized energy use and stable dew point
• Filtration: shipped with pre- and post-filtration (general-purpose and high-efficiency)
• Certifications: UL 60335-1, UL 60335-2-40, CSA 22.2 #60335-1, CSA 22.2 #60335-2-40
• Testing: extensive testing under rated, high-load, and low-load conditions for leak-free operation and specification compliance
• Typical inlet/outlet connections and electricals vary by model (see performance table above for inlet flow, pressure drop, voltages, connection sizes, power consumption, dimensions and shipping weights)
