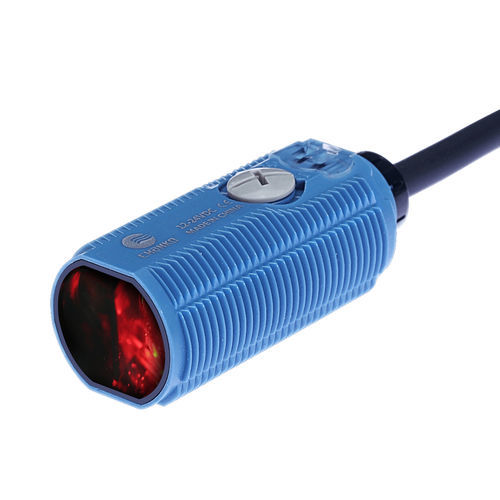

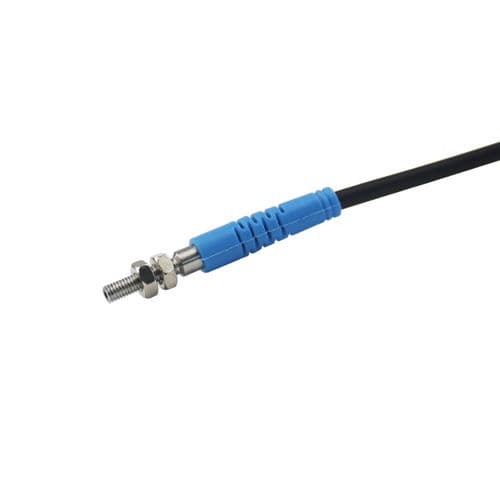

Diffuse reflective sensor photoelectric sensor CPA-DF1MP3-Acylindricalinfraredplastic
Add to favorites
Compare this product
Characteristics
- Sensing mode
- diffuse reflective sensor
- Housing
- cylindrical
- Type of beam
- infrared
- Other characteristics
- plastic
- Applications
- for logistics
- Maximum range
Max.: 1 m
(3'03" )Min.: 0 m
(0'00" )
Description
Product overview
Key features
Accessories
Mechanical / Electrical parameters
Operating environment
Optical & detection
Materials
Applications / Notes
Technical specifications
- Model: CPA-DF1MP3-A
- Series: CPA series photoelectric sensors
Key features
- Detection range: 0–1 m
- Housing: cylindrical, M18
- Detection principle: diffuse (reflective)
- Output: PNP NO/NC
- Supply voltage: DC 12–24 V
- Cable length: 0.5 m (or M12 connector option)
- Response frequency: 500 Hz
- Response time: 1 ms
Accessories
- User manual
- M18 nuts ×2
- Inspection certificate
Mechanical / Electrical parameters
- Wiring: 4-wire DC
- Protection rating: IP65
- Connection: M12 connector option
- Signal type: switching
- Operation mode: Light ON / Dark ON
- Supply current: <25 mA
- Indicators: operation (orange), stability (green)
- Protection: short-circuit protection
- Residual voltage: <3 V (load supply <30 V)
- Load current: <100 mA (with residual voltage <3 V, load supply <30 V)
- Insulation resistance: >20 MΩ (DC 500 V megger)
- Sensitivity adjustment: single-turn knob
- Weight: approx. 55 g
- Shock resistance: 300 m/s², 3 shocks each X/Y/Z
- Vibration resistance: 10–55 Hz, 1.5 mm amplitude, 2 h each X/Y/Z
- Dielectric strength: AC 1000 V 50/60 Hz, 1 min (between live parts and housing)
Operating environment
- Operating temperature: -25 °C to 55 °C
- Operating/storage humidity: 35–95% RH (no condensation)
- Ambient illumination: <10000 lx
Optical & detection
- Light source: infrared
- Detection direction: frontal
- Hysteresis: <20% of detection range
- Standard target: white paper 300 × 300 mm
Materials
- Housing / nuts: ABS
- Lens / display window: PMMA
- Knob: POM
- Cable: PVC
Applications / Notes
- Typical applications: 3C electronics, automated parking systems, logistics & warehouse automation inspection
Technical specifications
- Detection range: 0–1 m
- Housing size: M18
- Cable length: 0.5 m
- Output: PNP NO/NC
- Supply voltage: DC 12–24 V
- Response frequency: 500 Hz
- Response time: 1 ms
- Protection rating: IP65
- Supply current: <25 mA
- Load current: <100 mA
- Residual voltage: <3 V
- Insulation resistance: >20 MΩ (DC 500 V)
- Operation mode: Light ON / Dark ON
- Indicators: orange (operation), green (stability)
- Shock / vibration / dielectric: see mechanical / electrical parameters
- Weight: ≈55 g
