Fiber optic sensor head CX3-DE8L200N1

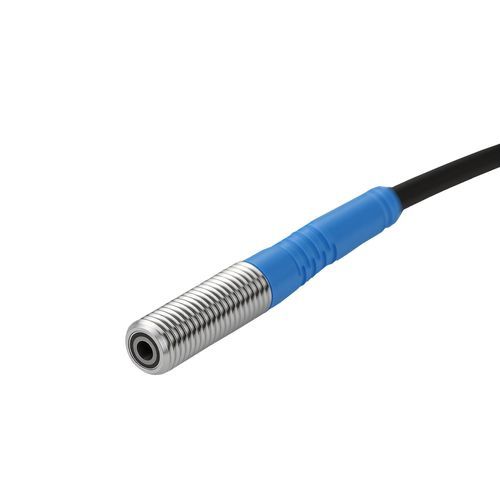

Fiber optic sensor head - CX3-DE8L200N1 - CHANKO SENSOR
Fiber optic sensor head - CX3-DE8L200N1 - CHANKO SENSOR
Add to favorites
Compare this product
Go to the CHANKO SENSOR website for more information

Description

Product series
CX3 series laser fiber sensor

Main features
  • Form factor: M8 threaded, straight type
  • Detection principle: diffuse reflection
  • Light source: laser
  • Detection range: 20–200 mm
  • Spot diameter: approx. Φ2 mm
  • Output: NPN Normally Open (NO)


Technical specifications
  • Light source: laser
  • Form factor: M8 threaded, straight
  • Detection principle: diffuse reflection
  • Detection range: 20–200 mm
  • Spot diameter: approx. Φ2 mm
  • Housing material: stainless steel
  • Ingress protection: IP65
  • Cable: Ø3.8 mm PVC, length 1.5 m
  • Operating temperature: 0–50°C


Mechanical / electrical parameters
  • Supply voltage: DC 12–24 V
  • Output type: NPN NO
  • Operating mode: Light ON
  • Response frequency: 100 Hz
  • Signal type: switching output
  • Current consumption: <10 mA
  • Circuit protection: short-circuit and overload protection
  • Maximum load current: 120 mA


Recommended applications
  • 3C electronics manufacturing (components, inspection)
  • Automated parking systems and vehicle detection
  • Logistics and warehouse automation
